LOK DOUBLE OGIVE FITTINGS

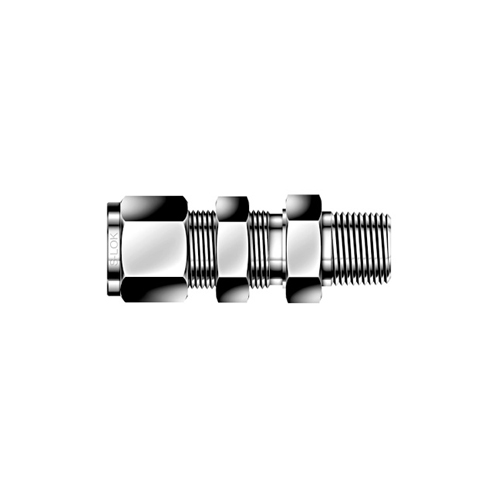

LOK SMCB - NPT bulkhead male connector

LOK SMCB - NPT bulkhead male connector
Download sheet in pdf format

Description and technical data

Bulkhead straight end fitting for stainless steel pipe with American NPT thread.
Minimum package 10 pieces.

Code
diameter
Tube
fillet steak
hole
internal
inches
mm
NPT
mm
SMCB-2-2N
1/8
3.17
1/8
2.28

SMCB-4-2N
1/4
6.35
1/8
4.82

SMCB-4-4N
1/4
6.35
1/4
4.82

SMCB-6-4N
3/8
9.52
1/4
7.11

SMCB-6-6N
3/8
9.52
3/8
7.11

SMCB-6-8N
3/8
9.52
1/2
7.11

SMCB-8-6N
1/2
12.7
3/8
9.65

SMCB-8-8N
1/2
12.7
1/2
10.41

SMCB-12-12N
3/4
19.05
3/4
15.74

SMCB-16-16N
1
25.4
1
10.35pm

SMCB-20-20N
1-1/4
31.75
1-1/4
27.68

SMCB-24-24N
1-1/2
38.1
1-1/2
34.03

SMCB-32-32N
2
50.8
2
45.97
