LOK DOUBLE OGIVE FITTINGS

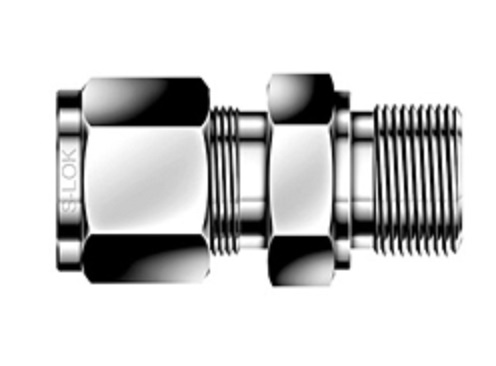

LOK SOM - BSPP male metric tube for metal gasket

Description and technical data

Straight end fitting in AISI 316 stainless steel with double nose for pipes with metric external diameter and inch cylindrical male thread to be used combined with the copper metal gasket (LOK SGC type). Mainly used in the presence of high temperatures where the metal/rubber gasket (BONDED) is not effective.
Minimum package 10 pieces.

CODE	SIDE A	SIDE B
SOM-3M-2G	3	1/8
SOM-3M-4G	3	1/4
SOM-4M-2G	4	1/8
SOM-6M-2G	6	1/8
SOM-6M-4G	6	1/4
SOM-6M-6G	6	3/8
SOM-6M-8G	6	1/2
SOM-8M-2G	8	1/8
SOM-8M-4G	8	1/4
SOM-8M-6G	8	3/8
SOM-8M-8G	8	1/2
SOM-10M-4G	10	1/4
SOM-10M-6G	10	3/8
SOM-10M-8G	10	1/2
SOM-12M-4G	12	1/4
SOM-12M-6G	12	3/8
SOM-12M-8G	12	1/2
SOM-12M-12G	12	3/4
SOM-15M-8G	15	1/2
SOM-16M-6G	16	3/8
SOM-16M-8G	16	1/2
SOM-18M-8G	18	1/2
SOM-18M-12G	18	3/4
SOM-20M-8G	20	1/2
SOM-20M-12G	20	3/4
SOM-22M-12G	22	3/4
SOM-22M-16G	22	1
SOM-25M-12G	25	3/4
SOM-25M-16G	25	1
SOM-28M-16G	28	1
SOM-28M-20G	28	1-1/4
SOM-32M-20G	32	1-1/4
SOM-38M-24G	38	1-1/2
