LOK DOUBLE OGIVE FITTINGS

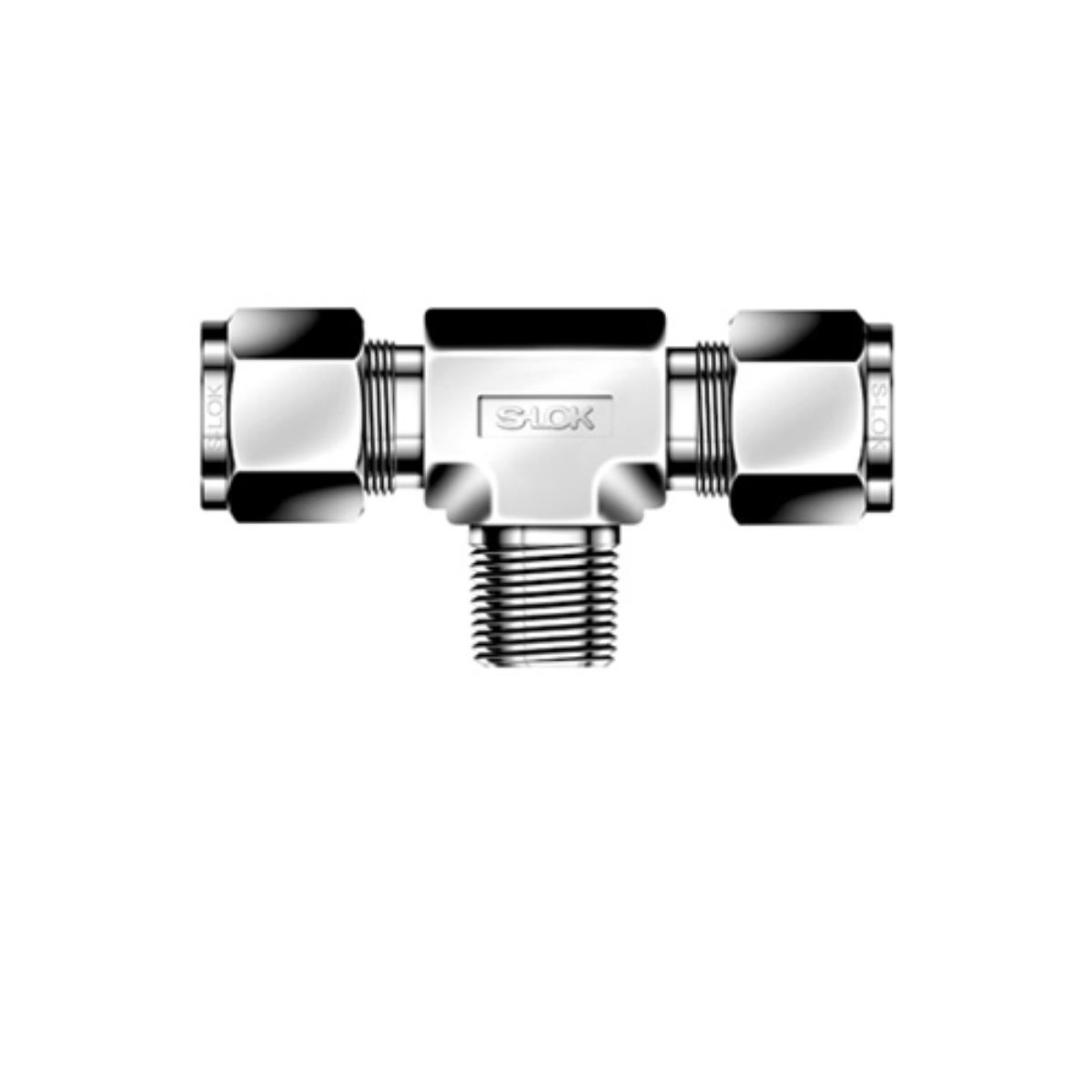

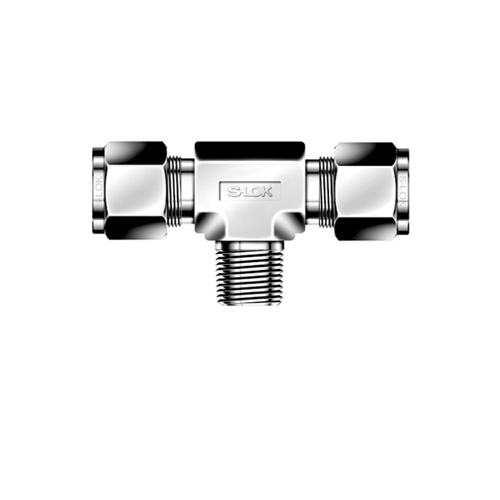

LOK STBM - BSPT conical central male tee - Metric tube

LOK STBM - BSPT conical central male tee - Metric tube
Download sheet in pdf format

Description and technical data

Tee fitting for metric stainless steel pipe with central male with BSPT thread. Pack of 10 pieces.



Code
diameter
Tube
fillet steak
internal hole
fitting
mm
 BSPT
mm
STBM-3M-2R
3
1/8"
2.4

STBM-3M-4R
3
1/4"
2.4
STBM-4M-2R
4
1/8"
2.4

STBM-4M-4R
4
1/4"
 2.4
STBM-6M-2R
6
1/8"
4.8

STBM-6M-4R
6
1/4"
4.8

STBM-6M-6R
6
3/8"
4.8
STBM-4M-8R
6
1/2"
4.8

STBM-8M-2R
8
1/8"
4.8

STBM-8M-4R
8
1/4"
6.4

STBM-8M-6R
8
3/8"
6.4

STBM-8M-8R
8
1/2"
6.4

STBM-10M-2R
10
1/8"
4.8

STBM-10-4R
10
1/4"
7.1
STBM-10M-6R
10
3/8"
7.9

STBM-10M-8R
10
1/2"
7.9

STBM-12M-2R
12
1/8"
4.8

STBM-12M-4R
12
1/4"
7.1

STBM-12M-6R
12
3/8"
9.5

STBM-12M-8R
12
1/2"
9.5

STBM-12M-12R
12
3/4"
9.5

STBM-16M-6R
16
1/2"
11.9

STBM-16M-8R
16
1/2"
11.9

STBM-16M-12R
16
3/4"
12.7

STBM-18M-8R
18
1/2"
11.9

STBM-18M-12R
18
3/4"
15.1

STBM-20M-8R
20
1/2"
11.9

STBM-20M-12R
20
3/4"
15.9

STBM-22M-12R
22
 3/4"
15.9

STBM-22M-16R
22
1"
18.3

STBM-25M-12R
25
3/4"
15.9
STBM-25M-16R
25
1"
21.8
