LOK DOUBLE OGIVE FITTINGS

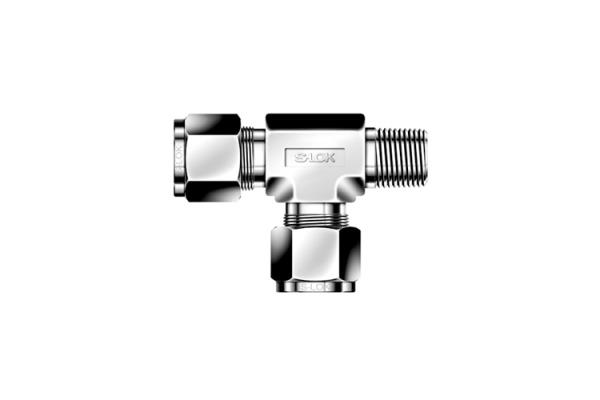

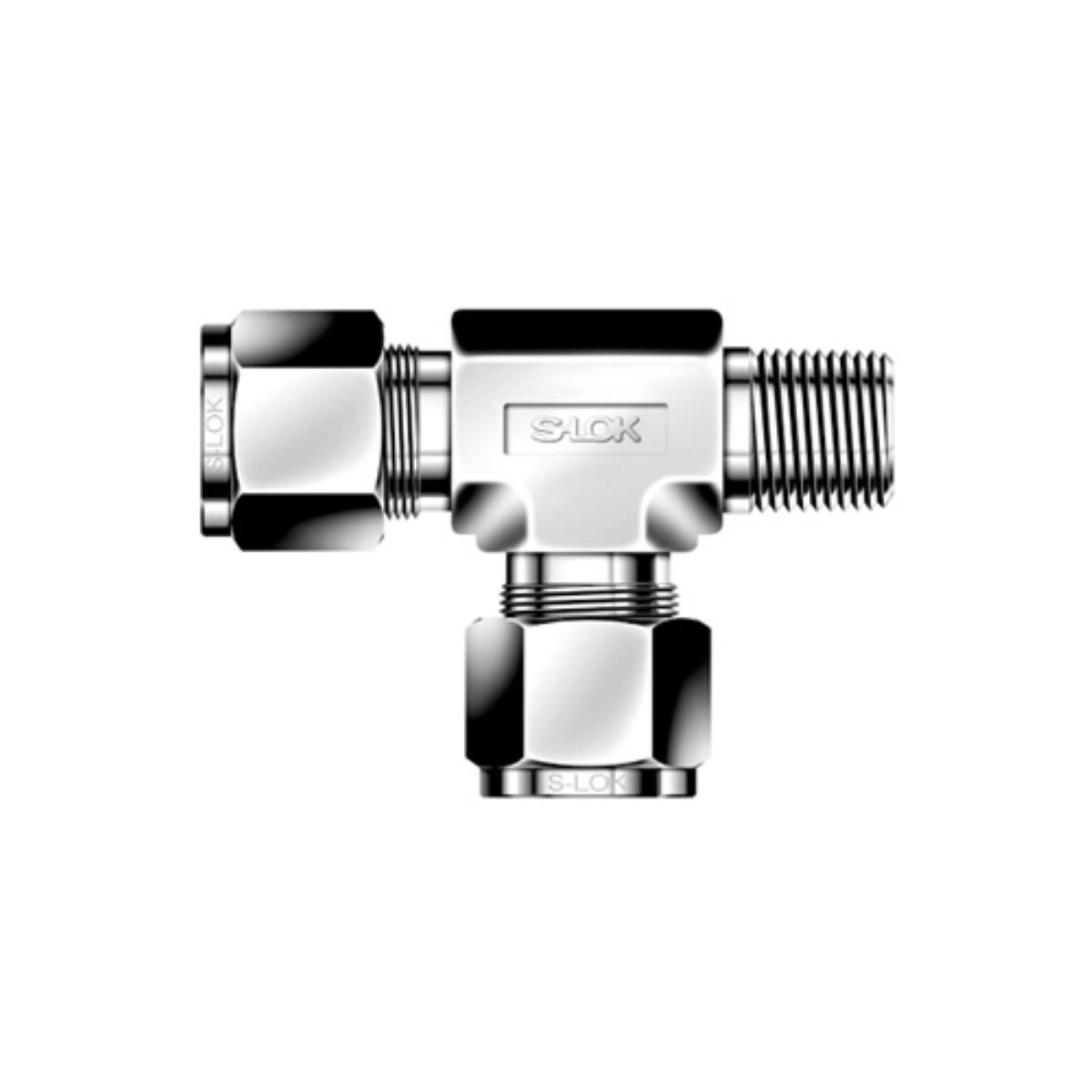

LOK STRM - NPT lateral male tee

LOK STRM - NPT lateral male tee
Download sheet in pdf format

Description and technical data

T-fitting for stainless steel pipe measures in inches with lateral male with American NPT thread. Minimum package 10 pieces.



Code
diameter
Tube
fillet steak
internal hole
fitting
inches
mm
NPT
mm
STRM-1-1N
1/16"
1.59
1/16"
1.27

STRM-1-2N
1/16"
1.59
1/8"
1.27

STRM-2-2N
1/8"
3.17
1/8"
2.28

STRM-2-4N
1/8"
3.17
1/4"
2.28

STRM-3-4N
3/16"
4.76
1/8"
3.04

STRM-4-1N
3/16"
4.76
1/4"
3.04

STRM-4-2N
1/4"
6.35
1/16"
 3.04
STRM-4-4N
1/4"
6.35
1/8"
4.82

STRM-4-6N
1/4"
6.35
1/4"
4.82

STRM-4-8N
1/4"
6.35
3/8"
4.82

STRM-5-2N
5/16"
7.93
1/8"
4.82

STRM-5-4N
5/16"
7.93
1/4"
6.35

STRM-5-6N
5/16"
7.93
3/8"
6.35

STRM-6-4N
3/8"
9.52
1/4"
7.11

STRM-6-6N
3/8"
9.52
3/8"
7.11

STRM-6-8N
3/8"
9.52
1/2"
7.11
STRM-6-12N
3/8"
9.52
3/4"
7.11

STRM-8-4N
1/2"
12.70
1/4"
7.11

STRM-8-6N
1/2"
12.70
3/8"
9.65

STRM-8-8N
1/2"
12.70
1/2"
10.41

STRM-8-12N
1/2"
12.70
3/4"
10.41

STRM-10-6N
5/8"
15.87
3/8"
9.65

STRM-10-8N
5/8"
15.87
1/2"
11.93

STRM-10-12N
5/8"
15.87
3/4"
12.70

STRM-12-8N
3/4"
19.05
1/2"
11.93

STRM-12-12N
3/4"
19.05
3/4"
15.74

STRM-14-12N
7/8"
10.23pm
3/4"
15.74

STRM-16-12N
1"
25.4
3/4"
15.74

STRM-16-16N
1"
25.4
1"
10.35pm

STRM-20-20N
1"1 / 4
31.75
1"1 / 4
27.68

STRM-24-24N
1"1 / 2
38.10
1"1 / 2
34.03

STRM-32-32N
2"
50.80
2"
45.97
