PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS
/
STAINLESS STEEL SAFETY CONNECTIONS
/
STANDARD STAINLESS STEEL LOK FITTINGS
/
LOK STANDARD SGC - ISO parallel seal
STANDARD STAINLESS STEEL LOK FITTINGS
LOK STANDARD SGC - ISO parallel seal
Request a quote
Download sheet in pdf format

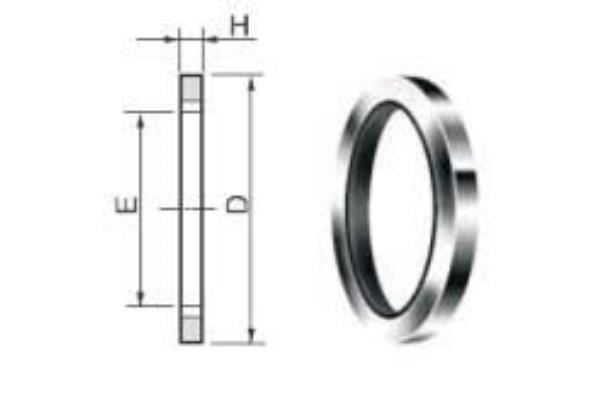

Description and technical data
Code
Measure
Length
Diameter
hole
Thickness
NPT
mm
mm
mm
SGC -2N
1/8"
18.0
10.0
2.0
SGC -4N
1/4"
22.0
14.0
2.0
SGC -6N
3/8"
26.0
17.0
2.0
SGC -8N
1/2"
32.0
22.0
2.0
SGC -12N
3/4"
38.0
27.0
2.0
SGC -16N
1"
42.0
34.0
2.0
