STANDARD STAINLESS STEEL LOK FITTINGS

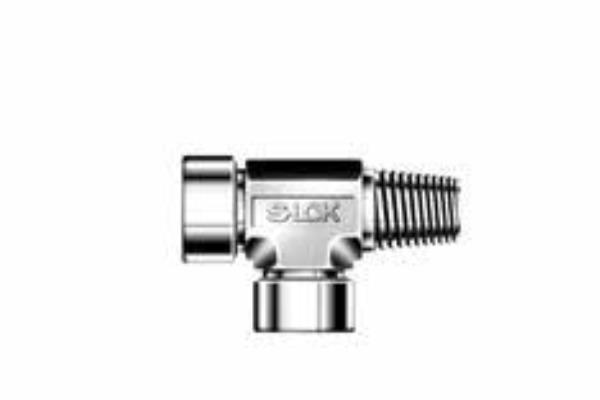

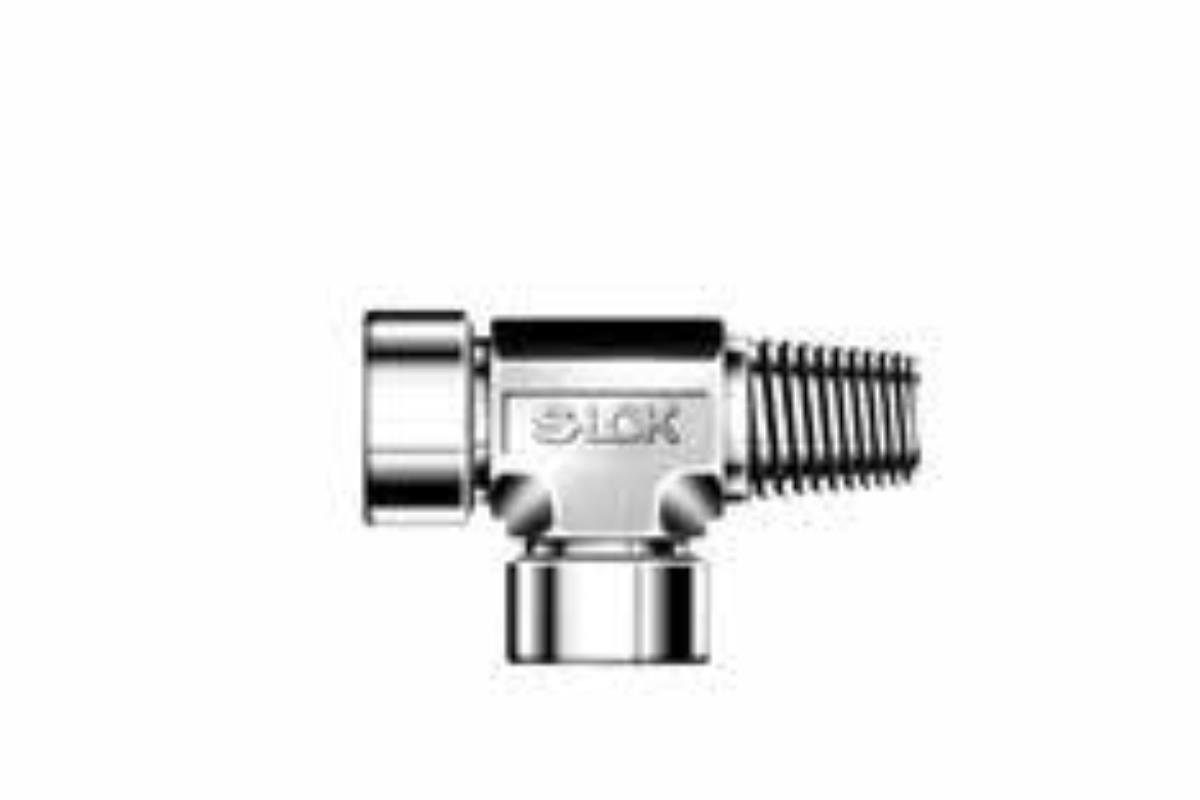

LOK STANDARD P-SRT - Female to Male to Female NPT Quick Tee Fitting

LOK STANDARD P-SRT - Female to Male to Female NPT Quick Tee Fitting
Download sheet in pdf format

Description and technical data


Code
 Diameter
hole/screw
Length
female
 Length
male
NPT mm mm
P-SRT -2N 1/8" 24.1 19.6
P-SRT -4N 1/4" 29.0 26.5
P-SRT -6N 3/8" 34.5 28.2
P-SRT -8N 1/2" 37.0 35.3
P-SRT -12N 3/4" 46.5 39.6
P-SRT -16N 1" 48.8 49.2
