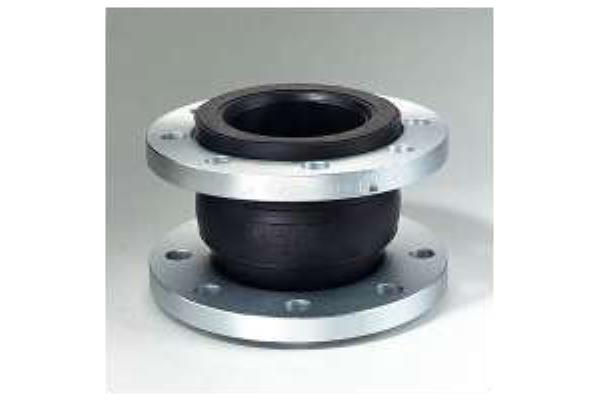

SINGLE WAVE RUBBER COMPENSATOR
ONLINE CATALOGUE › RUBBER COATED FLANGED COMPENSATORS › RUBBER COMPENSATOR FLANGED TO ONE WAVE
Download sheet in pdf format
American standard SINGLE WAVE RUBBER FLANGED COMPENSATORS
they can also be suitable and certifiable for uses in the food sector.
STRUCTURE
- Rotating flanges in galvanized steel, on request INOX 304, INOX 316, aluminum
- Galvanized carbon steel step reinforcement
- Elastomer body: SBR - NBR - EPDM - white EPDM
- Textile reinforcement in synthetic fiber (NYLON)
DATA REFERS TO A TEMPERATURE OF 21°C
DATA REFERS TO A TEMPERATURE OF 21°C
they can also be suitable and certifiable for uses in the food sector.
STRUCTURE
- Rotating flanges in galvanized steel, on request INOX 304, INOX 316, aluminum
- Galvanized carbon steel step reinforcement
- Elastomer body: SBR - NBR - EPDM - white EPDM
- Textile reinforcement in synthetic fiber (NYLON)
DATA REFERS TO A TEMPERATURE OF 21°C
| from DN25 to DN300 | DN350 | from DN400 to DN700 | |
| Max pressure | 16 bars | 10 bars | 8 bars |
| Burst pressure | 60 bars | 24 bars | 24 bars |
| Maximum depression | 650 mm/Hg | 650 mm/Hg | 650 mm/Hg |
| Operating temperature | -20° +100°C | -20° +100°C | -20° +100°C |
| item | Diameter nominal | Length | OR hole | OR lip | Eligible movements | Pressure positive | Weight | |||||
| Axial | Lateral | Angular | ||||||||||
| inch. | mm | inch. | mm | mm | mm | compression | elongation | +/- | +/- | Cafe | Kg | |
| 10-AS025 | 1" | 25 | 6" | 152 | 25 | 50 | 1/2" | 3/8" | 1/2" | 15° | 16 | 2.02 |
| 10-AS032 | 1"1/4 | 32 | 6" | 152 | 40 | 69 | 1/2" | 3/8" | 1/2" | 15° | 16 | 3.27 |
| 10-AS040 | 1"1/2 | 40 | 6" | 152 | 40 | 60 | 1/2" | 3/8" | 1/2" | 15° | 16 | 3.77 |
| 10-AS050 | 2" | 50 | 6" | 152 | 52 | 86 | 1/2" | 3/8" | 1/2" | 15° | 16 | 4.39 |
| 10-AS065 | 2"1/2 | 65 | 6" | 152 | 68 | 106 | 1/2" | 3/8" | 1/2" | 15° | 16 | 5.62 |
| 10-AS080 | 3" | 80 | 6" | 152 | 76 | 116 | 1/2" | 3/8" | 1/2" | 15° | 16 | 6.49 |
| 10-AS100 | 4" | 100 | 6" | 152 | 103 | 150 | 5/8" | 3/8" | 1/2" | 15° | 16 | 7.49 |
| 10-AS125 | 5" | 125 | 6" | 152 | 128 | 180 | 5/8" | 3/8" | 1/2" | 15° | 16 | 9.54 |
| 10-AS150 | 6" | 150 | 6" | 152 | 152 | 209 | 5/8" | 3/8" | 1/2" | 15° | 16 | 12.80 |
| 10-AS200 | 8" | 200 | 6" | 152 | 194 | 260 | 5/8" | 3/8" | 1/2" | 15° | 16 | 5.30pm |
| 10-AS250 | 10" | 250 | 8" | 203 | 250 | 320 | 5/8" | 1/2" | 3/4" | 15° | 16 | 25.55 |
| 10-AS300 | 12" | 300 | 8" | 203 | 300 | 367 | 3/4" | 1/2" | 3/4" | 15° | 16 | 31.35 |
| 10-AS350 | 14" | 350 | 8" | 203 | 320 | 408 | 3/4" | 1/2" | 3/4" | 15° | 8 | 40.50 |
| 10-AS400 | 16" | 400 | 8" | 203 | 372 | 472 | 3/4" | 1/2" | 3/4" | 15° | 8 | 47.50 |
| 10-AS450 | 18" | 450 | 8" | 203 | 415 | 522 | 3/4" | 1/2" | 3/4" | 15° | 8 | 59.40 |
| 10-AS500 | 20" | 500 | 8" | 203 | 454 | 570 | 3/4" | 1/2" | 3/4" | 15° | 8 | 67.90 |
| 10-AS600 | 24" | 600 | 10" | 254 | 580 | 690 | 3/4" | 1/2" | 3/4" | 15° | 8 | 86.00 |
| 10-AS700 | 28" | 700 | 10" | 254 | 680 | 800 | 3/4" | 1/2" | 3/4" | 15° | 8 | 105.00 |
| 10-AS800 | 32" | 800 | 10" | 254 | - | - | 1" | - | - | 15° | 6 | 180.00 |
| 10-AS900 | 36" | 900 | 10" | 254 | - | - | 1" | - | - | 15° | 6 | 250.00 |
| 10-AS1000 | 40" | 1000 | 10" | 254 | - | - | 1" | - | - | 15° | 6 | 300.00 |
DATA REFERS TO A TEMPERATURE OF 21°C
