EPDM RUBBER SHEET L/E
ONLINE CATALOGUE › RUBBER SHEETS › Rubber
Download sheet in pdf format

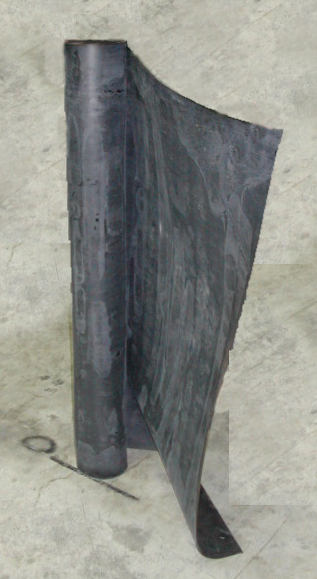

Rubber sheet with moderate EPDM content, BLACK color.
It has good physical and mechanical properties, good resistance to heat, weathering, and aging. It is primarily used for outdoor applications where good resistance to ozone and temperature changes is required.
Surface : Smooth/Smooth or on request CANVAS IMPRESSION/CANVAS IMPRESSION.
Operating temperature: -20°C +100°C
Specific weight: 1.35 gr/cm 3
HARDNESS: ASTM D573 standards = ±10 Shore A
BREAKING LOAD: ASTM D573 Standards = -20%
ELONGATION: ASTM D573 Standards = -30%
OZONE RESISTANCE:
50 pphm/48 h at T 40°C, elongation 20% according to Standards: ASTM D1149 No cracking.
Operating temperature: -20°C +100°C
Specific weight: 1.35 gr/cm 3
HARDNESS: ASTM D573 standards = ±10 Shore A
BREAKING LOAD: ASTM D573 Standards = -20%
ELONGATION: ASTM D573 Standards = -30%
OZONE RESISTANCE:
50 pphm/48 h at T 40°C, elongation 20% according to Standards: ASTM D1149 No cracking.
| THICKNESS mm | HEIGHT mm | LENGTH meters |
| 1 | 1.2 | 10 |
| 1.5 | 1.2 | 10 |
| 2 | 1.2 | 10 |
| 3 | 1.2 | 10 |
| 4 | 1.2 | 10 |
| 5 | 1.2 | 10 |
| 6 | 1.2 | 10 |
| 7 | 1.2 | 10 |
| 8 | 1.2 | 10 |
| 9 | 1.2 | 10 |
| 10 | 1.2 | 10 |
| 12 | 1.2 | 5 |
| 15 | 1.2 | 5 |
| 20 | 1.2 | 5 |
| 25 | 1 | 1 |
| 50 | 1 | 1 |
