PVC SPIRAL
ONLINE CATALOGUE › SPIRAL
Download sheet in pdf format

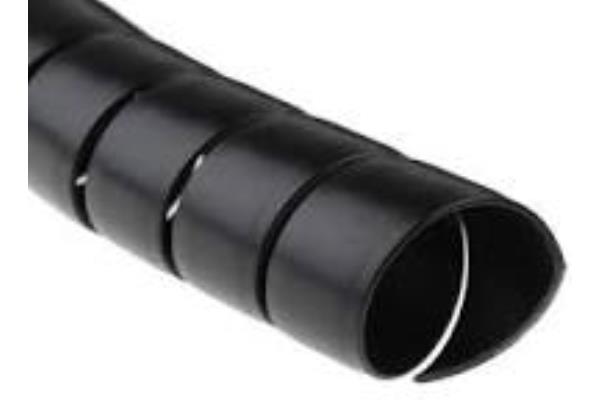

Spiral and curved shaped strap in shockproof rigid PVC. Ideal for wrapping and containing bundles of hydraulic, hydraulic hoses and electrical wiring.
Excellent resistance to abrasion, crushing, ultra violet rays, ozone and flame.
Complies with UL94 V0 self-extinguishing class
Operating temperature: -10° +70°C
SHORE HARDNESS A78 +/-5
Elongation at break (ISO R 527): 130%
Breaking load (ISO R 527): 40 kg/cm2
VICAT 5 Kg (ISO R 306) 79°c +/-2
IZOD +23°C (ISO R 180): 250 J/m +/-50
Elastic modulus (ISO R 178): 2800 N/mm2 +/-100
Excellent resistance to abrasion, crushing, ultra violet rays, ozone and flame.
Complies with UL94 V0 self-extinguishing class
Operating temperature: -10° +70°C
SHORE HARDNESS A78 +/-5
Elongation at break (ISO R 527): 130%
Breaking load (ISO R 527): 40 kg/cm2
VICAT 5 Kg (ISO R 306) 79°c +/-2
IZOD +23°C (ISO R 180): 250 J/m +/-50
Elastic modulus (ISO R 178): 2800 N/mm2 +/-100
| diameter internal mm | diameter external mm | weight theoretical kg/m | length roll m |
| 8 | 12 | 0.05 | 50 |
| 12 | 16 | 0.06 | 50 |
| 16 | 20 | 0.08 | 50 |
| 20 | 25 | 0.12 | 50 |
| 24 | 29 | 0.19 | 50 |
| 27 | 32 | 0.22 | 50 |
| 30 | 35 | 0.25 | 50 |
| 35 | 40 | 0.33 | 50 |
| 44 | 50 | 0.48 | 25 |
| 56 | 63 | 0.80 | 20 |
| 67 | 75 | 0.88 | 20 |
| 80 | 90 | 1.39 | 10 |
| 100 | 110 | 1.90 | 7 |
| 120 | 130 | 2.50 | 6 |
