SPIRALINA_HDPE_FX
ONLINE CATALOGUE › SPIRAL
Download sheet in pdf format

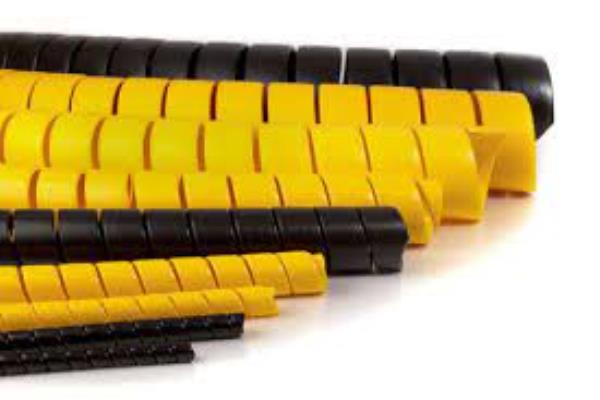

Spiral and curved shaped strap in rigid shock-proof HDPE (HIGH DENSITY POLYETHYLENE).
Ideal for wrapping and containing bundles of hydraulic, hydraulic hoses and electrical wiring.
Excellent resistance to LOW TEMPERATURES, abrasion, crushing, ultra violet rays and ozone.
The material's excellent chemical resistance properties make it particularly useful in the presence of acids, oils and aromatic solvents. available in perforated version.
Operating temperature: -55° +100°C
MSHA REGULATED IC-344/01
Flame retardant compliant with UL94 V0 self-extinguishing class (HALOGEN FREE)
Light gray colour
Shore hardness D:68
Elongation at break: -1/-2 <20% (ISO527)
Density: 1.14 gr/m (ASTM D-792)
Voltage modulus: -1/-2 Mpa 1300 (ISO 527)
Tensile strength: -1/-2 Mpa 18 (ISO 527)
VICAT (50N): 75° (ASTM D-1525)
Melt Volume Rate (230°C/2.16kg): 10min 0.80cc (ISO 1133)
Ideal for wrapping and containing bundles of hydraulic, hydraulic hoses and electrical wiring.
Excellent resistance to LOW TEMPERATURES, abrasion, crushing, ultra violet rays and ozone.
The material's excellent chemical resistance properties make it particularly useful in the presence of acids, oils and aromatic solvents. available in perforated version.
Operating temperature: -55° +100°C
MSHA REGULATED IC-344/01
Flame retardant compliant with UL94 V0 self-extinguishing class (HALOGEN FREE)
Light gray colour
Shore hardness D:68
Elongation at break: -1/-2 <20% (ISO527)
Density: 1.14 gr/m (ASTM D-792)
Voltage modulus: -1/-2 Mpa 1300 (ISO 527)
Tensile strength: -1/-2 Mpa 18 (ISO 527)
VICAT (50N): 75° (ASTM D-1525)
Melt Volume Rate (230°C/2.16kg): 10min 0.80cc (ISO 1133)
| diameter internal mm | diameter external mm | thickness wall mm | weight theoretical kg/m | length roll m | step of spiral m |
| 9 | 12 | 1.40 | 0.05 | 25 | 10-11 |
| 13 | 16 | 1.60 | 0.07 | 25 | 10-11 |
| 16 | 20 | 2.00 | 0.11 | 25 | 18-19 |
| 20 | 25 | 2.50 | 0.14 | 25 | 20-21 |
| 27 | 32 | 2.70 | 0.26 | 25 | 22-23 |
| 34 | 40 | 3.00 | 0.32 | 25 | 25-26 |
| 43 | 50 | 3.30 | 0.48 | 25 | 29-31 |
| 56 | 63 | 4.00 | 0.55 | 25 | 38-40 |
| 67 | 76 | 4.50 | 0.76 | 20 | 45 |
| 80 | 90 | 5.00 | 1.13 | 20 | 45 |
| 100 | 111 | 5.50 | 1.79 | 15 | 50 |
