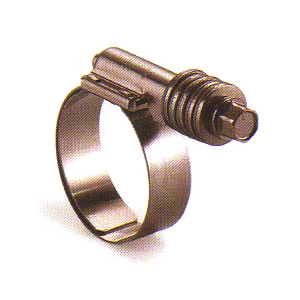

COSTANT TORQUE INOX clamp
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › AISI 304-316 W4-W5 STAINLESS STEEL CLAMPS
Download sheet in pdf format
Constant tension clamps used on pipes subject to diametrical variations
caused by thermal expansion due to the considerable stress of the engines
internal combustion engines and their significant vibrations.
the dynamic control of the cup springs ensures a high tightening torque,
always constant.
In the presence of fluid leaks caused by traditional clamps, the use of these
cable ties allow you to significantly reduce maintenance and fluid refill costs.
Rounded edges to give maximum protection to the pipes.
Band and drawer in AISI 300 stainless steel - screw in AISI 410 stainless steel.
caused by thermal expansion due to the considerable stress of the engines
internal combustion engines and their significant vibrations.
the dynamic control of the cup springs ensures a high tightening torque,
always constant.
In the presence of fluid leaks caused by traditional clamps, the use of these
cable ties allow you to significantly reduce maintenance and fluid refill costs.
Rounded edges to give maximum protection to the pipes.
Band and drawer in AISI 300 stainless steel - screw in AISI 410 stainless steel.
| CONSTANT TORQUE AS | ||||
| 8 WASHERS | ||||
| Band Width 14.30 mm | ||||
| Clamping range | packaging | part number | Part number | |
| SAE | mm | minimum | Global | Brand |
| 10 | 14-27 | 50 | 0362 0302 021 | CT 9410 |
| 12 | 17-32 | 50 | 0362 0302 025 | CT 9412 |
| 16 | 21-38 | 50 | 0362 0302 029 | CT 9416 |
| 20 | 21-44 | 50 | 0362 0302 033 | CT 9420 |
| 24 | 27-51 | 10 | 0362 0302 039 | CT 9424 |
| 28 | 33-57 | 10 | 0362 0302 049 | CT 9428 B |
| 32 | 40-64 | 10 | 0362 0302 052 | CT 9432 B |
| 36 | 46-70 | 10 | 0362 0302 058 | CT 9436 B |
| 40 | 52-76 | 10 | 0362 0302 064 | CT 9440 B |
| 44 | 59-83 | 10 | 0362 0302 075 | CT 9444 B |
| 48 | 65-89 | 10 | 0362 0302 077 | CT 9448 B |
| 52 | 71-95 | 10 | 0362 0302 083 | CT 9452 B |
| CONSTANT TORQUE HD SS | ||||
| 10 WASHERS | ||||
| Band Width 16mm | ||||
| Clamping range | packaging | Global | Brand | |
| SAE | mm | minimum | part number | part number |
| 28 | 25-44 | 10 | 0156 0005 035 | CT 175 L SS |
| 212 | 32-54 | 10 | 0156 0005 043 | CT 200 L SS |
| 262 | 45-67 | 10 | 0156 0005 056 | CT 250 L SS |
| 312 | 57-79 | 10 | 0156 0005 068 | CT 300 L SS |
| 362 | 70-92 | 10 | 0156 0005 081 | CT 350 L SS |
| 412 | 83-105 | 10 | 0156 0005 094 | CT 400L SS |
| 462 | 95-117 | 10 | 0156 0005 107 | CT 450 L SS |
| 512 | 108-130 | 10 | 0156 0005 119 | CT 500 L SS |
| 562 | 121-143 | 10 | 0156 0005 132 | CT 550 L SS |
| 612 | 133-156 | 10 | 0156 0005 145 | CT 600 L SS |
| 662 | 146-168 | 10 | 0156 0005 157 | CT 650 L SS |
| 712 | 159-181 | 10 | 0156 0005 170 | CT 700 L SS |
| 762 | 172-194 | 10 | 0156 0005 183 | CT 750 L SS |
| 812 | 184-206 | 10 | 0156 0005 195 | CT 800 L SS |
| 862 | 197-219 | 10 | 0156 0005 208 | CT 850 L SS |
| 912 | 210-232 | 10 | 0156 0005 221 | CT 900 L SS |
