LIQUID HOSE/P

ONLINE CATALOGUE  ›  HOSES  ›  Self-bleeder hoses

LIQUID HOSE/P


Download sheet in pdf format

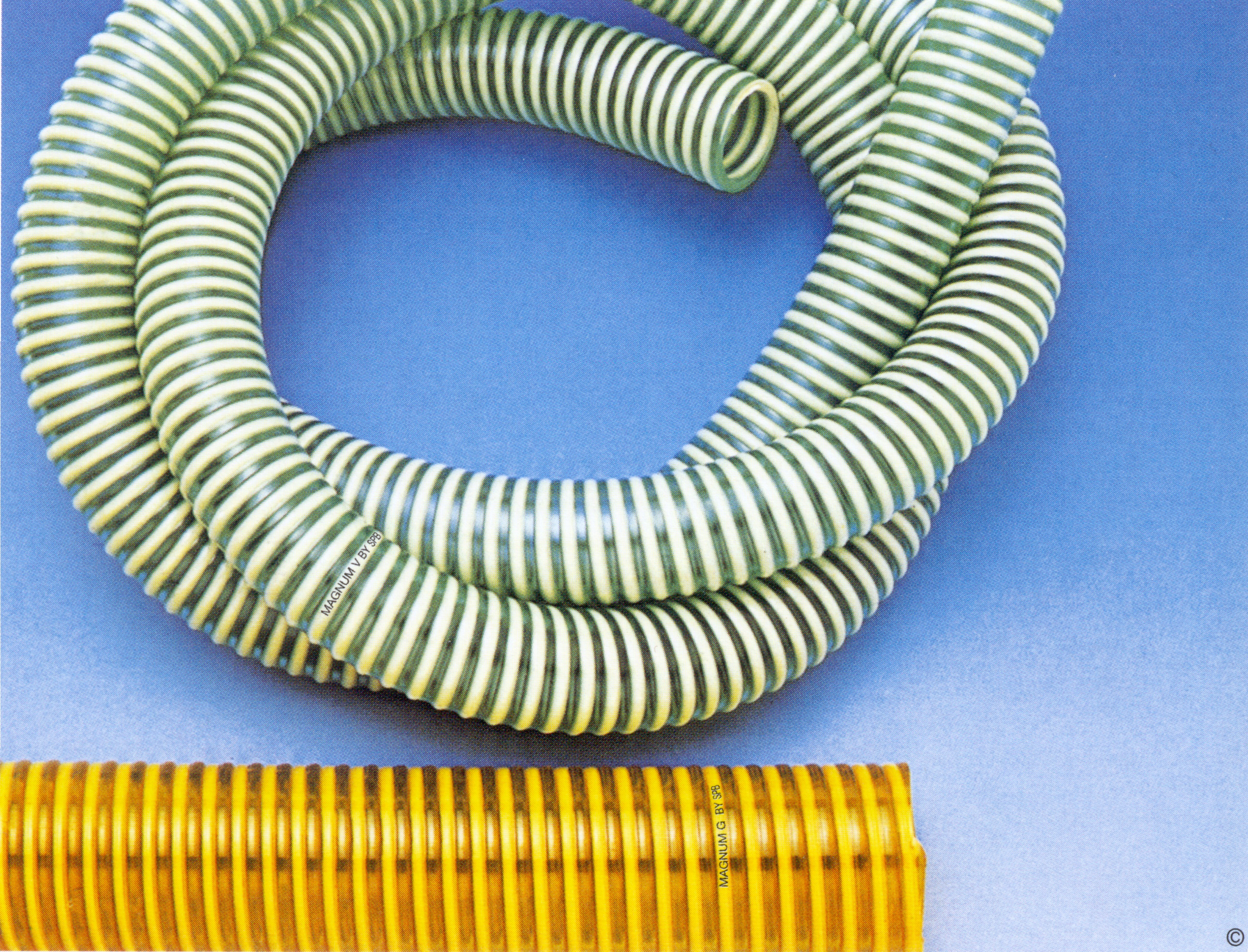

Flexible PVC hose with shock-proof and crush-proof rigid PVC reinforcement spiral. Resistant to the action of atmospheric agents and most chemical products. Smooth internal surface. Good resistance in suction and delivery.
Suitable for contact with food EU Regulation 10/2011 CE 1935/2004 2007/19CE simulants ABCB1.
 Operating temperature: -15°C +60°C Yellow colour, transparent with ivory spiral.

Codiceo Dimensions
mm		 Weight
g/m		 radius of
curvature mm		 Pressure
maximum bar		 Rolls
m
04PLIQUIP0020 20x25 280 100 8 50
04PLIQUIP0025 25x31 330 120 8 50
04PLIQUIP0030 30x37 420 160 7 50
04PLIQUIP0032 32x39 460 160 7 50
04PLIQUIP0035 35x41 500 180 7 50
04PLIQUIP0038 38x45 550 200 6.5 50
04PLIQUIP0040 40x47 600 200 6.5 50
04PLIQUIP0045 45x52 670 230 6.5 50
04PLIQUIP0050 50x58 810 250 6 50
04PLIQUIP0060 60x68 970 320 5 50
04PLIQUIP0063 63x70 1040 320 5 50
04PLIQUIP0070 70x78 1200 400 4 50
04PLIQUIP0075 75x85 1380 440 4 50
04PLIQUIP0080 80x91 1560 480 4 30
04PLIQUIP0090 90x100 1800 550 4 30
04PLIQUIP0102 102x115 2160 620 4 30
04PLIQUIP0110 110x121 2400 650 4 30
04PLIQUIP0120 120x131 2800 700 3 20
04PLIQUIP0125 125x137 3150 720 3 20
04PLIQUIP0150 150x163 4250 820 3 20
04PLIQUIP0200 200x218 6500 950 2 10
