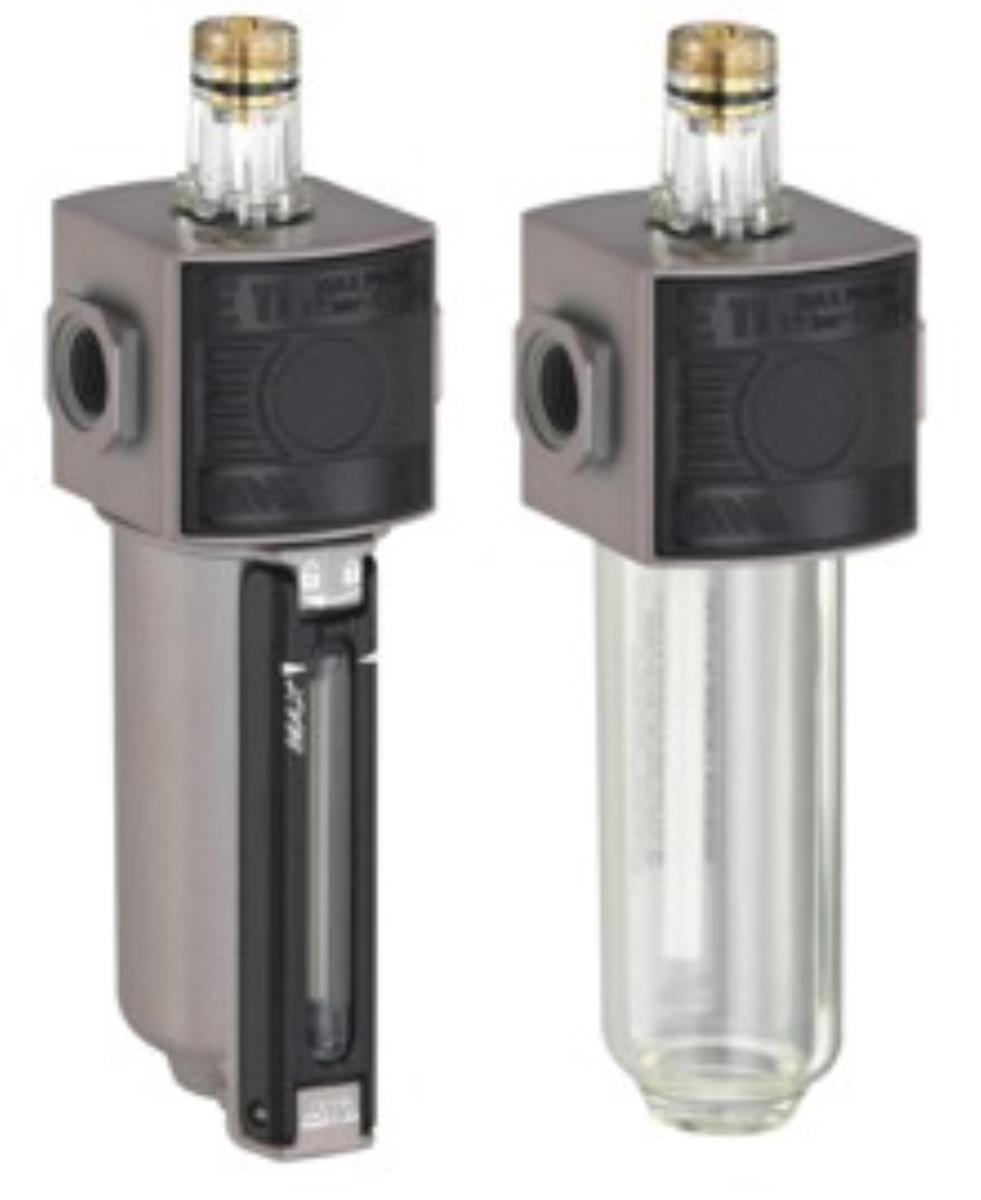

The operation of the mist lubricator is based on immediate mixing of the oil. This mixing is optimal even with small air passages. The modular system allows you to assemble several elements from the same family with different functions in a single block.

Connections:
  • 1/4” BSP Threads on body
  • 1/8” BSP With reduction
General characteristics
  • Powder coated metal body.
  • Cup with quick coupling in technopolymer ( E/11 series ) or metal ( E/11-P series ) with a capacity of 40 cm3 .
  • Oil sight glass in transparent technopolymer with 360° viewing and micrometric adjustment.
  • Valve that guarantees lubrication even at low flow rates.
