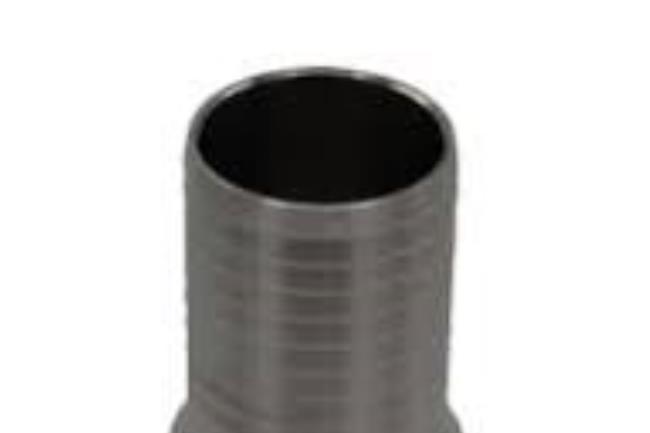

EN 14420-2 HOSE CONNECTOR FOR FLANGE
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › BENDS - FLANGES - CONICAL REDUCERS
Download sheet in pdf format
Code: 4031
TECHNICAL INFORMATION
AVAILABILITY in AISI 316 STEEL
TECHNICAL INFORMATION
- Shank compliant with EN 14420-2 standard with under-head ring for closing with safety jaws
- Type C 40S End Cap Conforms to ASME/ANSI B16.9
- Operating pressure from 10 to 50 bar
- Operating temperature -20°C +65°C
AVAILABILITY in AISI 316 STEEL
| CODE | DN PIPE | FOLDER DIAMETER | FLANGE HOLE DIAMETER |
| mm | mm | mm | |
| 374031_013 | 13 | 35.0 | 21.3 |
| 374031_020 | 20 | 42.9 | 26.7 |
| 374031_025 | 25 | 50.8 | 33.4 |
| 374031_032 | 32 | 63.5 | 42.2 |
| 374031_038 | 38 | 73.0 | 48.3 |
| 374031_050 | 50 | 92.0 | 60.3 |
| 374031_063 | 63 | 104.6 | 73.0 |
| 374031_075 | 75 | 127.0 | 88.9 |
| 374031_100 | 100 | 157.2 | 114.3 |
| 374031_125 | 125 | 185.7 | 141.3 |
| 374031_152 | 152 | 215.9 | 168.3 |
| 374031_204 | 204 | 269.9 | 219.1 |
