GUILLEMIN SYMMETRIC FITTINGS

GUILLEMIN SYSTEM NF E 29-572 / EN 14420-8

QUICK FITTINGS MADE IN FRENCH FOR THE QUICK CONNECTION OF PIPES AND SYSTEMS FOR HEAVY DUTY IN THE CHEMICAL INDUSTRY, SILO, TANK TRUCKS AND AGRICULTURE SECTORS.

SUPPLIABLE MATERIALS:

ALUMINUM AL-A356 AS7G (T6)
AISI316 STAINLESS STEEL
BRASS BR57-3
POLYPROPYLENE CONTAINING ABOUT 25-30% GLASS FIBER.

MAXIMUM WORKING PRESSURE 16 Bar FOR STEEL, ALUMINUM, BRASS
MAXIMUM OPERATING PRESSURE 9 Bar FOR POLYPROPYLENE

WELDABLE ENDS ON REQUEST
POCKET WELDING END ON REQUEST
NPT THREAD ON REQUEST
VARIOUS POSSIBILITIES OF REDUCTIONS FOR SMS FITTINGS ON REQUEST
VARIOUS POSSIBILITIES OF REDUCTIONS FOR DIN 11854 FITTINGS ON REQUEST
VARIOUS POSSIBILITIES OF REDUCTIONS FOR STORZ FITTINGS ON REQUEST
ON REQUEST WITH DSP FITTINGS AND CERTIFICATIONS

Catalogue

Products

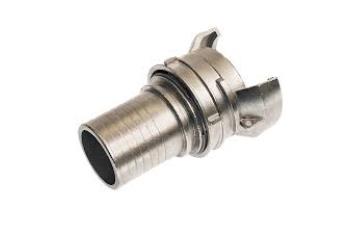

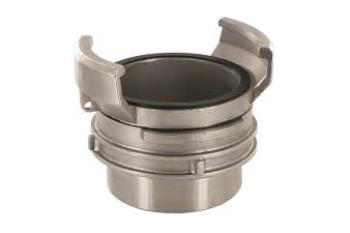

GUILLEMIN FITTING WITH HOSE HOLDER

GUILLEMIN FITTING WITH HOSE HOLDER

Guillemin quick coupling with tightening ring and safety collar (*) available materials: aisi316 steel, aluminum, brass,...

GUILLEMIN FITTING WITH LONG HOSE PORT

GUILLEMIN FITTING WITH LONG HOSE PORT

Guillemin quick connection with tightening ring. version with swivel female thread available materials: aluminum dn fill...

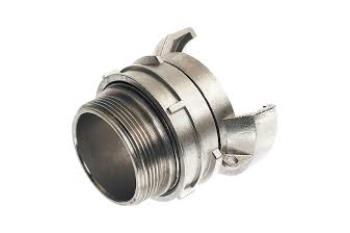

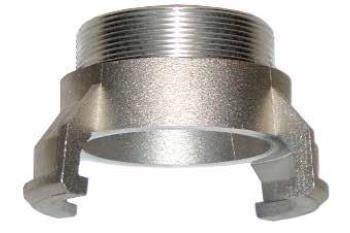

MALE GUILLEMIN FITTING WITH CLOSURE

MALE GUILLEMIN FITTING WITH CLOSURE

Guillemin quick fitting with bsp male thread tightening ring available materials: aluminum, aisi316 steel, brass ...

MALE GUILLEMIN FITTING WITHOUT CLOSURE

MALE GUILLEMIN FITTING WITHOUT CLOSURE

Guillemin quick fitting without tightening ring, bsp male thread available materials: aluminum, aisi316 steel, br...

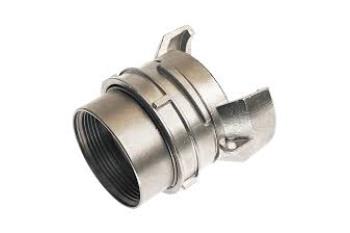

GUILLEMIN FEMALE FITTING WITH CLOSURE

GUILLEMIN FEMALE FITTING WITH CLOSURE

Guillemin quick fitting with bsp female thread tightening ring available materials: aluminum, aisi316 steel, bras...

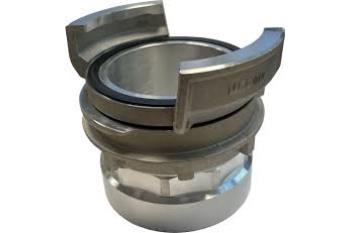

SWIVEL FEMALE GUILLEMIN FITTING

SWIVEL FEMALE GUILLEMIN FITTING

Guillemin quick connection with tightening ring version with swivel female thread. available materials: aluminum dn fill...

GUILLEMIN FEMALE FITTING WITHOUT CLOSURE

GUILLEMIN FEMALE FITTING WITHOUT CLOSURE

Guillemin quick fitting without tightening ring, bsp female thread available materials: aluminum, aisi316 steel, ...

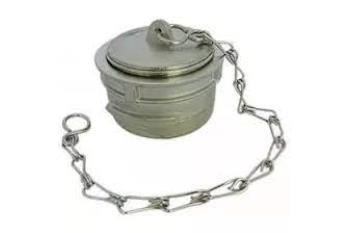

GUILLEMIN CAP WITH CLOSURE

GUILLEMIN CAP WITH CLOSURE

Guillemin quick cap with tightening ring, complete with chain available materials: aluminum, aisi316 steel, brass...

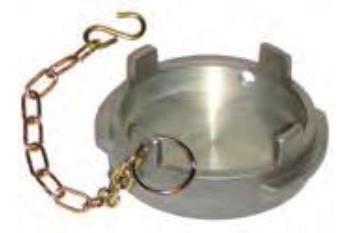

GUILLEMIN CAP WITHOUT CLOSURE

GUILLEMIN CAP WITHOUT CLOSURE

Guillemin quick cap without tightening ring, complete with chain available materials: aisi316 steel, aluminum. d...

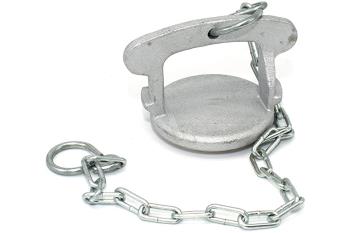

GUILLEMIN CAP WITH LIFTING HANDLE

GUILLEMIN CAP WITH LIFTING HANDLE

Guillemin quick cap with lifting handle complete with chain available materials: aisi316 steel, aluminum. diameter nomi...

GUILLEMIN WELD FITTING

GUILLEMIN WELD FITTING

Guillemin quick cap with tightening ring, with smooth sleeve to weld available materials: aisi316 steel diameter nomina...

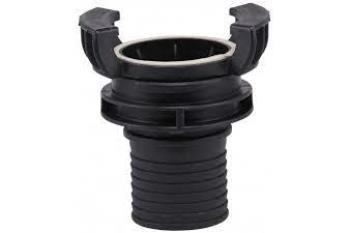

GUILLEMIN FITTING WITH GROOVED POLYPROPYLENE SOCKET

GUILLEMIN FITTING WITH GROOVED POLYPROPYLENE ...

Guillemin quick coupling with grooved socket. available materials: polypropylene. with closure diameter nominal attack ...

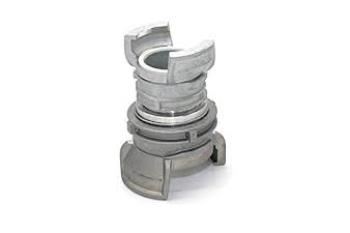

GUILLEMIN REDUCTION FITTING WITH CLOSURE

GUILLEMIN REDUCTION FITTING WITH CLOSURE

Available materials: aisi316 steel, aluminum diameter nominal diameter nominal pressure bar aluminum stainless steel ai...

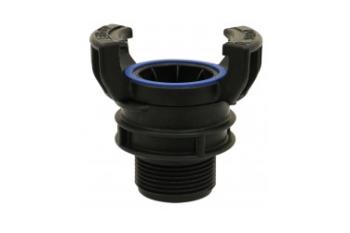

GUILLEMIN FITTING WITH BSP MALE THREAD IN POLYPROPYLENE

GUILLEMIN FITTING WITH BSP MALE THREAD IN ...

Guillemin quick fitting with bsp male thread. available materials: polypropylene. with closure diameter nominal thread ...

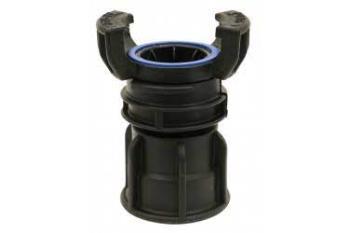

GUILLEMIN FITTING WITH BSP FEMALE THREAD IN POLYPROPYLENE

GUILLEMIN FITTING WITH BSP FEMALE THREAD ...

Guillemin quick fitting with bsp female thread. available materials: polypropylene. with closure diameter nominal threa...

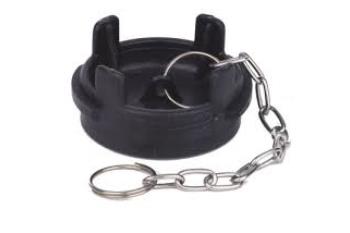

GUILLEMIN CAP WITHOUT CLOSURE IN POLYPROPYLENE

GUILLEMIN CAP WITHOUT CLOSURE IN POLYPROPYLENE

Guillemin quick cap without tightening ring (verrou) complete with chain available materials: polypropylene. without clo...

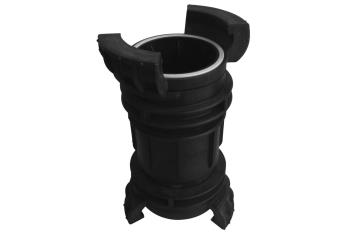

GUILLEMIN REDUCTION FITTING WITH POLYPROPYLENE CLOSURE

GUILLEMIN REDUCTION FITTING WITH POLYPROPYLENE ...

Guillemin reduction fitting with tightening ring (verrou). available materials : polypropylene. with closure diameter no...

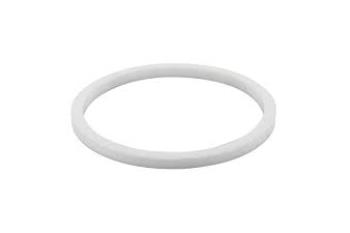

GUILLEMIN SEALS

GUILLEMIN SEALS

Type of gaskets for guillemin fitting food grade eu 1935/2004 color material dn 20 dn 25 dn 32 dn 40 dn 50 dn 65 dn 80 d...

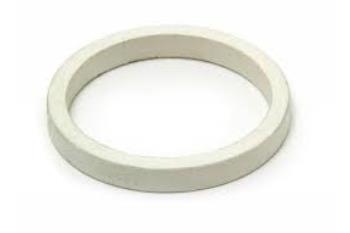

SEAL FOR GUILLEMIN SWIVEL FITTINGS

SEAL FOR GUILLEMIN SWIVEL FITTINGS

Seals only for swivel guillemin fitting color material dn 20 dn 25 dn 32 dn 40 dn 50 dn 65 dn 80 dn 100 white nbr x x x ...

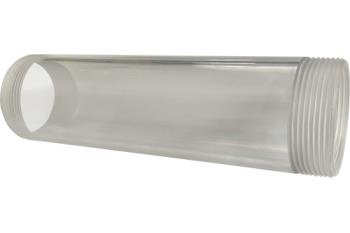

POLYCARBONATE SPECULATION

POLYCARBONATE SPECULATION

Transparent polycarbonate sight glass with male-male bsp thread on both sides. length 200 mm maximum operating pressure:...
