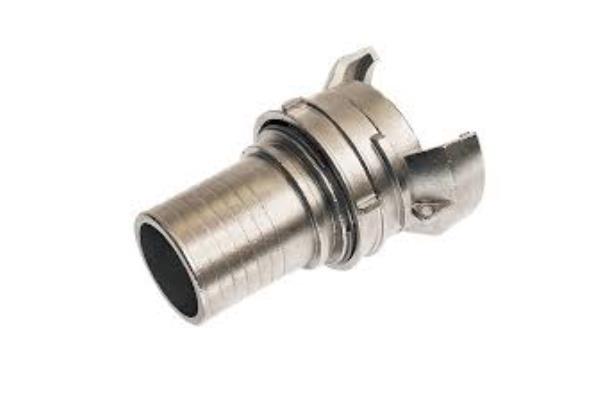

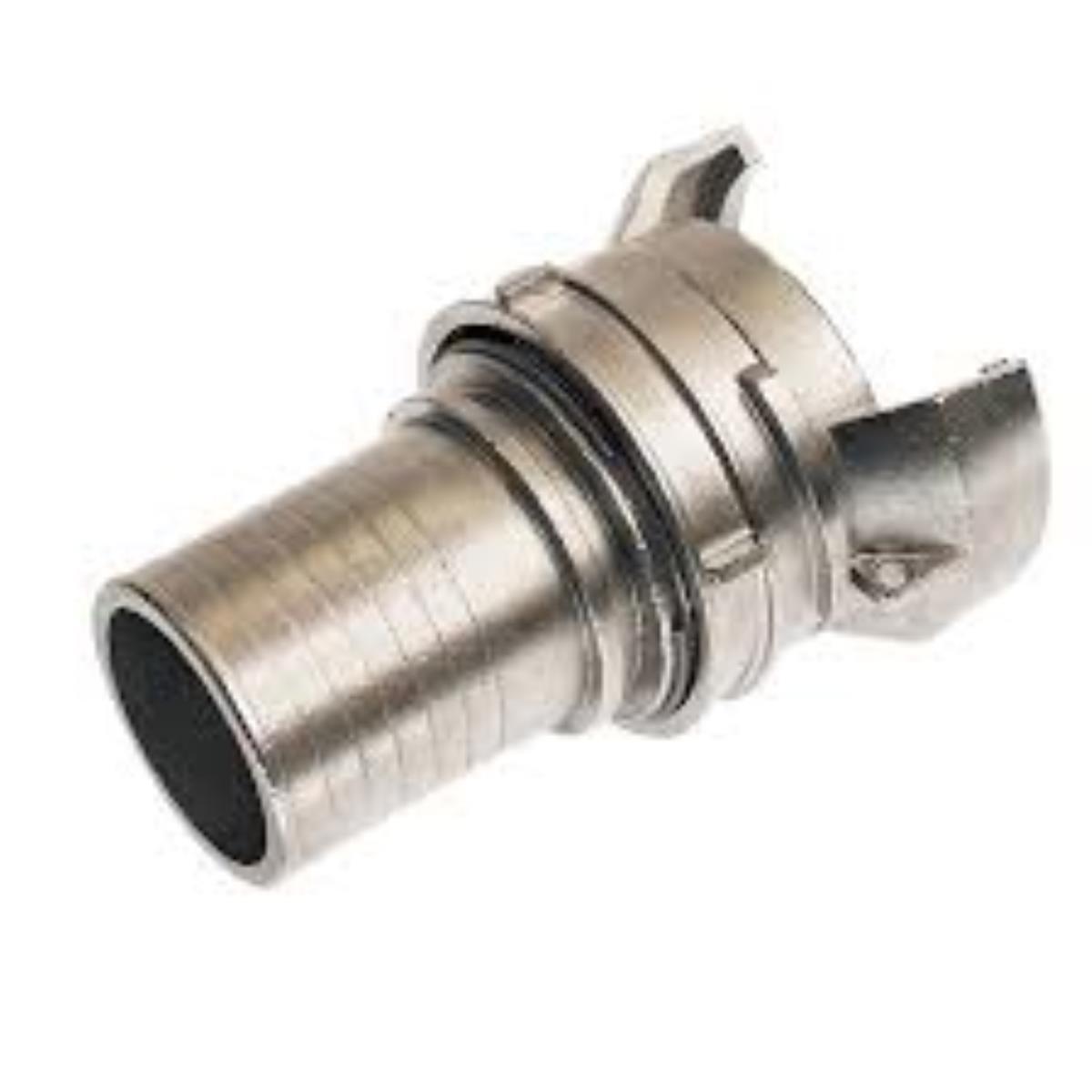

GUILLEMIN FITTING WITH HOSE HOLDER
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › GUILLEMIN SYMMETRIC FITTINGS
Download sheet in pdf format
GUILLEMIN QUICK COUPLING WITH TIGHTENING RING AND SAFETY COLLAR (*)
Available MATERIALS: AISI316 STEEL, ALUMINUM, BRASS, POLYPROPYLENE
Available MATERIALS: AISI316 STEEL, ALUMINUM, BRASS, POLYPROPYLENE
| DN | BRINGS ERASER mm | PRESSURE BAR | ALUMIN. | STAINLESS STEEL AISI 316 | BRASS | POLYPROP. |
| 20 | 20 | 16 | X | - | - | - |
| 20 | 25 | 16 | X | X | - | - |
| 25 | 25 | 16 | X | - | - | - |
| 32 | 35 | 16 | X | X | - | - |
| 40* | 40 | 16 | X | X | - | X |
| 40 | 45 | 16 | X | X | - | - |
| 50* | 50 | 16 | X | X | X | X |
| 50 | 55 | 16 | X | - | - | - |
| 65* | 64 | 16 | X | X | - | - |
| 65 | 70 | 16 | X | X | - | - |
| 80* | 76 | 16 | X | X | X | X |
| 80* | 80 | 16 | X | X | X | - |
| 80 | 90 | 16 | X | X | X | - |
| 100* | 100 | 16 | X | X | - | - |
| 100* | 102 | 16 | X | - | - | X |
| 100 | 110 | 16 | X | X | - | - |
| 125* | 125 | 16 | X | - | - | - |
| 150* | 152 | 16 | X | - | - | - |
