GUILLEMIN SYMMETRIC FITTINGS

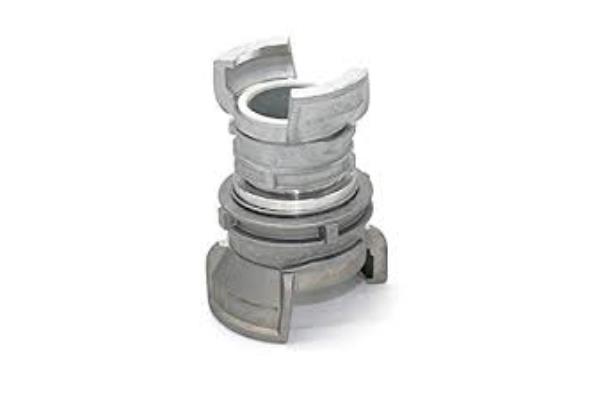

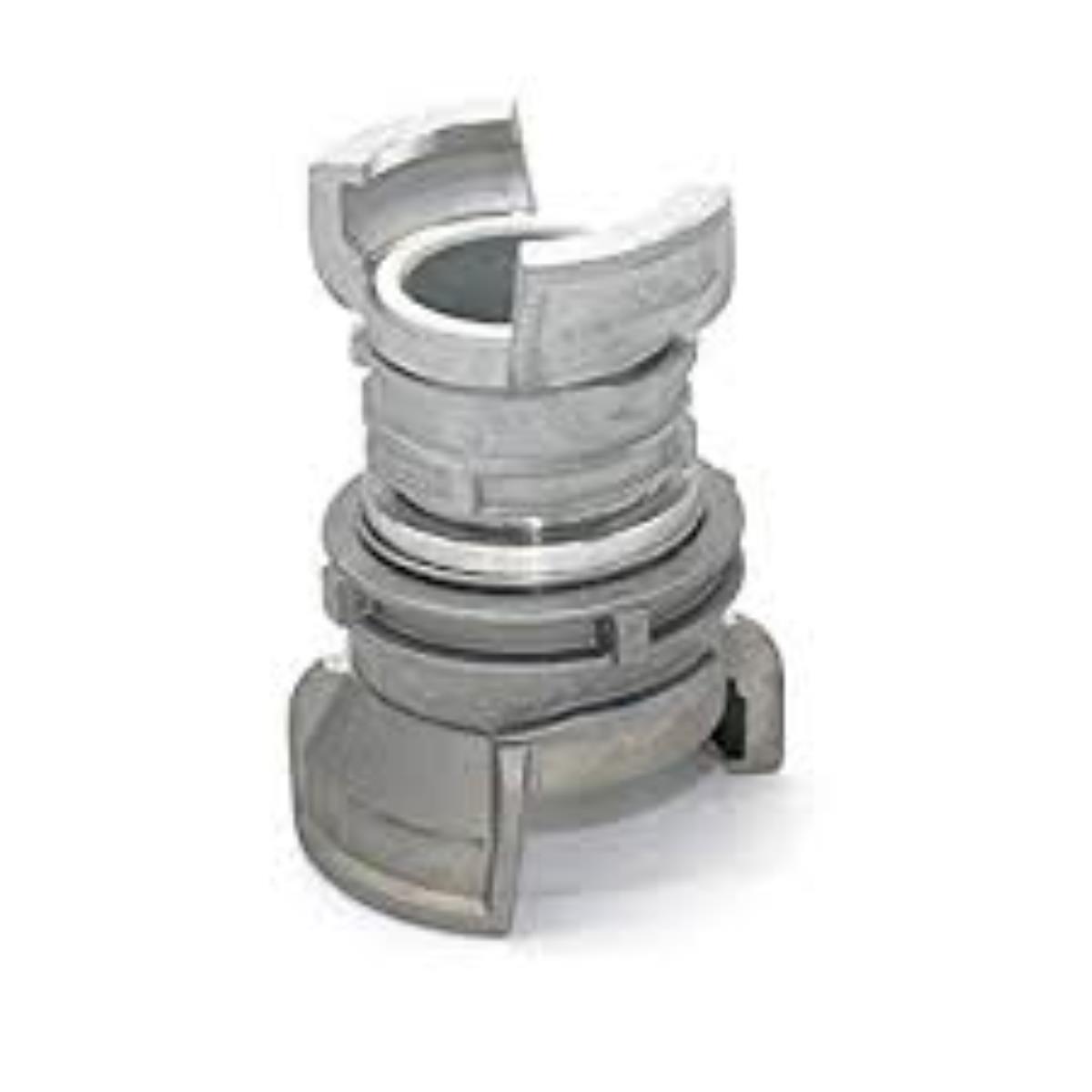

GUILLEMIN REDUCTION FITTING WITH CLOSURE

GUILLEMIN REDUCTION FITTING WITH CLOSURE
Download sheet in pdf format

Description and technical data

Available MATERIALS: AISI316 STEEL, ALUMINUM





DIAMETER
NOMINAL		 DIAMETER
NOMINAL
 PRESSURE
BAR		 ALUMINUM STAINLESS STEEL
AISI316		 BRASS POLYPROPYLENE
DN 40 DN 25 16 X - - -
DN 40 DN 32 16 X - - -
DN 50 DN 25 16 X - - -
DN 50 DN 40 16 X X - -
DN 65 DN 40 16 - X - -
DN 65 DN 50 16 X X - -
DN 80 DN 40 16 X - - -
DN 80 DN 50 16 X X X X
DN 80 DN 65 16 X X X -
DN 100 DN 40 16 X - - -
DN 100 DN 50 16 X X - -
DN 100 DN 65 16 X - - -
DN 100 DN 80 16 X X X X
DN 150 DN 100 16 X - - -
