ABRASIVE HOSE/10 BAR
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

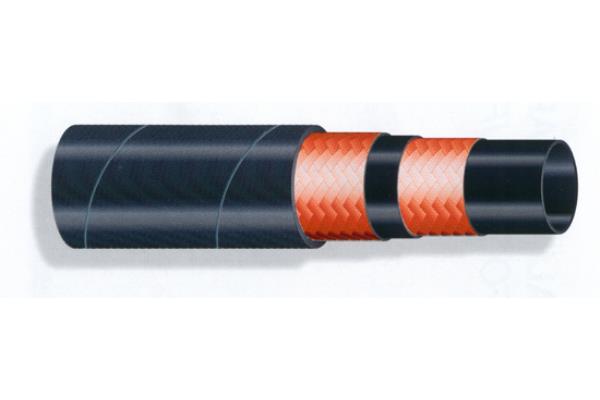

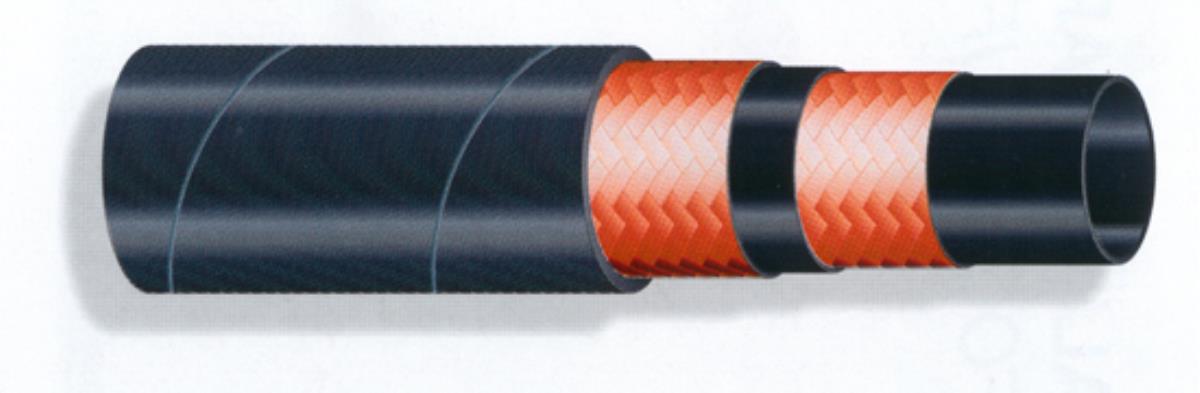

NR/SBR rubber hose.
Smooth black conductive natural rubber tube, highly anti-abrasive and wear-resistant. Abrasion-resistant black conductive synthetic rubber cover. Suitable for sandblasting and silica sand, metal grit and sand delivery systems.
Reference standard abrasion loss of the substrate according to ISO DIN 4949: max 70 +/- 5 mm 3
Operating temperature: -40° +70° C
Burst pressure 3 times the operating pressure (e.g. 18 - 54 bar)
Smooth black conductive natural rubber tube, highly anti-abrasive and wear-resistant. Abrasion-resistant black conductive synthetic rubber cover. Suitable for sandblasting and silica sand, metal grit and sand delivery systems.
Reference standard abrasion loss of the substrate according to ISO DIN 4949: max 70 +/- 5 mm 3
Operating temperature: -40° +70° C
Burst pressure 3 times the operating pressure (e.g. 18 - 54 bar)
| Diameters mm | Pressure of exercise Cafe | rolls |
|---|---|---|
| 13x25 | 18 | 40 |
| 15x27 | 18 | 40 |
| 16x30 | 18 | 40 |
| 19x30 | 18 | 40 |
| 25x40 | 18 | 40 |
| 30x45 | 18 | 40 |
| 32x48 | 18 | 40 |
| 35x54 | 18 | 40 |
| 38x54 | 18 | 40 |
| 40x60 | 18 | 40 |
| 45x65 | 18 | 40 |
| 50x70 | 18 | 20/40 |
| 60x80 | 18 | 20/40 |
| 65x84 | 18 | 20/40 |
| 80x105 | 12 | 20 |
| 90x115 | 12 | 20 |
| 102x125 | 12 | 20 |
