HEAVY DUTY BOLT CLAMP W2


Download sheet in pdf format

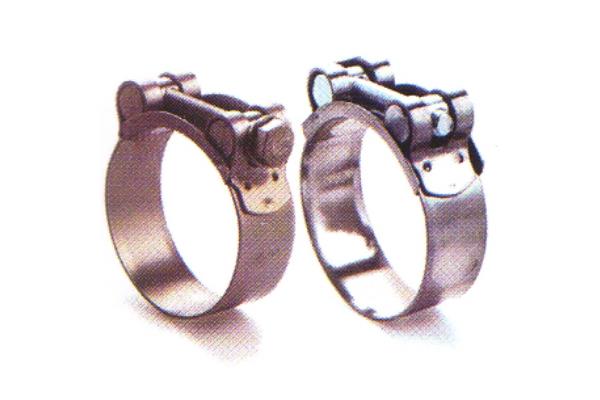

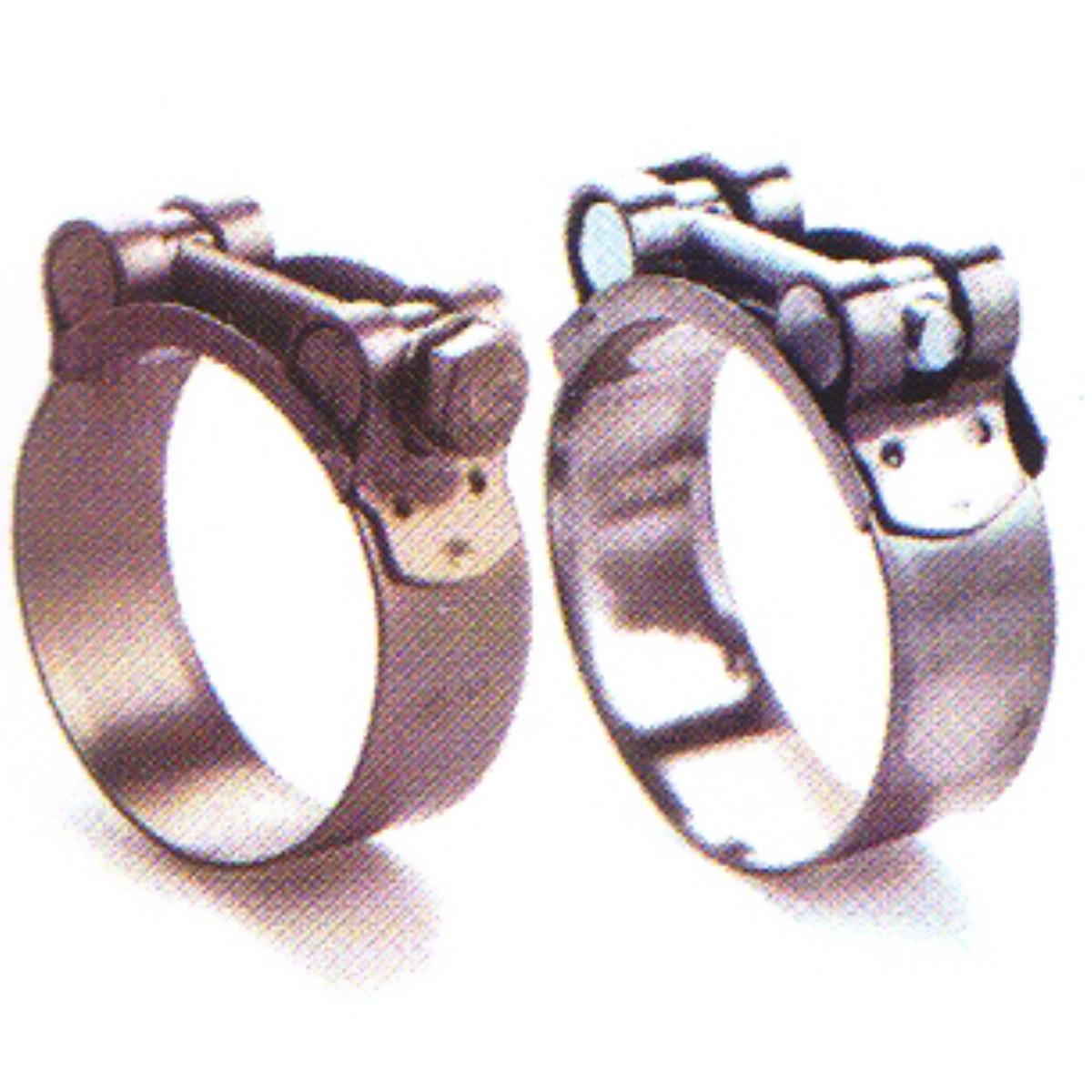

Bolt collars for high pressures and for reinforced pipes, with spirals or with high hardness.
The bolt is engaged directly on the threaded barrel and it is therefore possible to tighten the collars with electric or pneumatic screwdrivers.
Band with rounded edges. Bridge without slot. Rounded edges.
Band in W2 AISI 430 STAINLESS STEEL - Galvanized steel bolt.
On request also in a version completely in W4 AISI 304 STAINLESS STEEL, or in W5 AISI 316 STAINLESS STEEL.


length
band

mm		 thickness
band

mm		 maximum tightening torque
Nm		 lives field
Of
closure
18 0.6 10.2 M5x35 5pm - 7pm
8pm - 10pm
23 - 25
20 1.0 18.2 M6x45 26 - 28
M6x50 29 - 31
32 - 35
36 - 39
40 - 43
44 - 47
48 - 51
52 - 55
M6x55 56 - 59
60 - 63
64 - 67
25 1,2 26.3 M8x70 68 - 73
74 - 79
80 - 85
86 - 91
92 - 97
98 - 103
M8x80 104 - 112
113 - 121
122 - 130
131 - 139
140 - 148
25 1.5 M8x90 149 - 161
162 - 174
175 - 187
188 - 200
201 - 213
214 - 226
227 - 239
240 - 252
