FLEX / PRO SWEEPER HOSE
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for suction of highly abrasive solids
Download sheet in pdf format

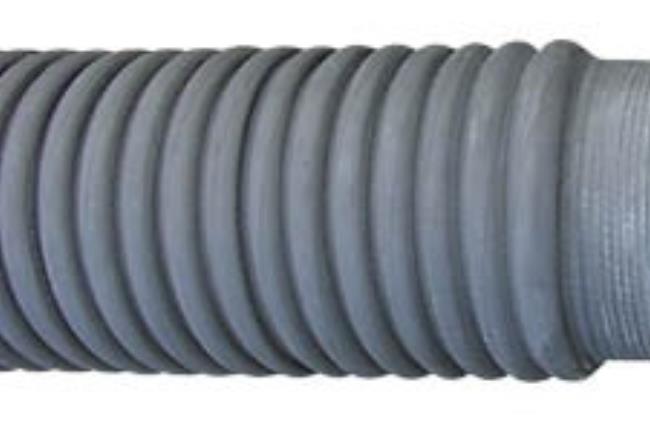

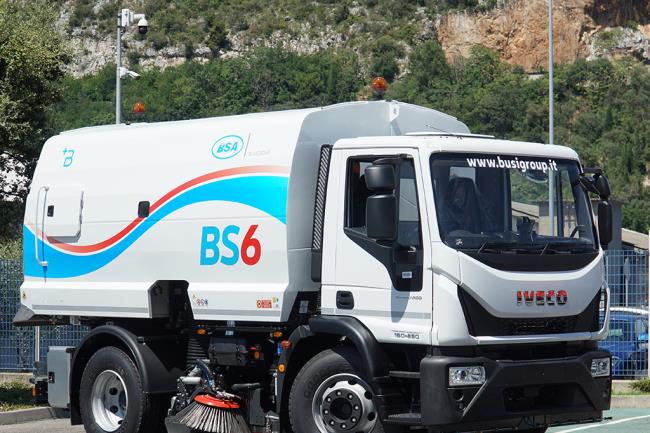

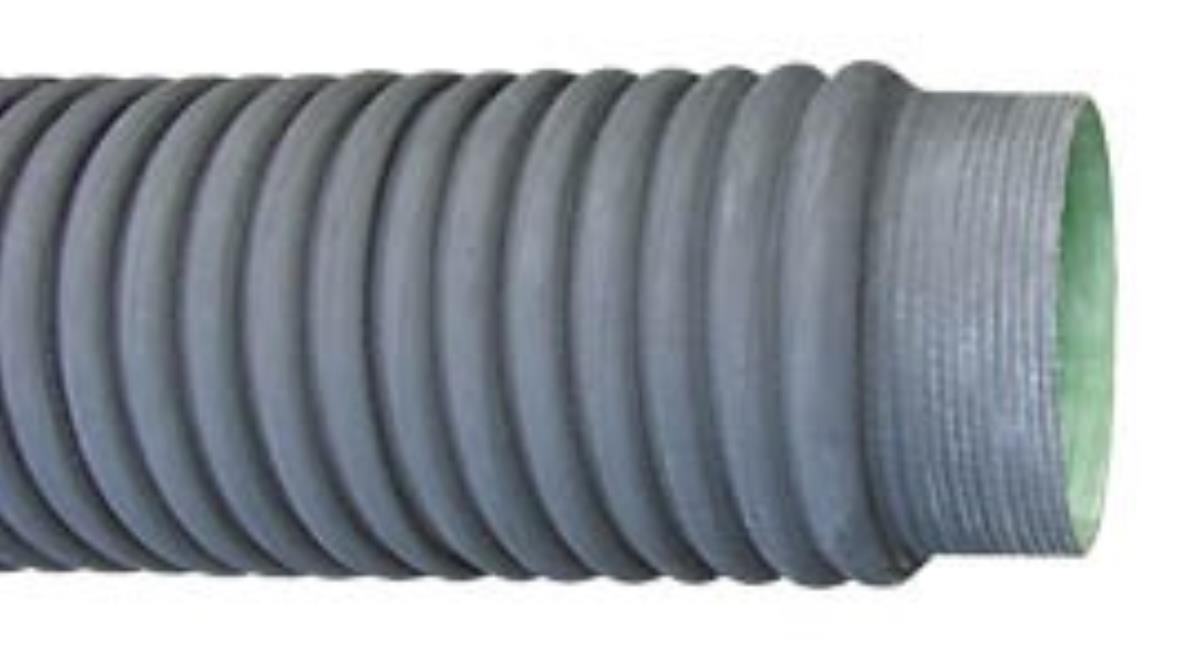

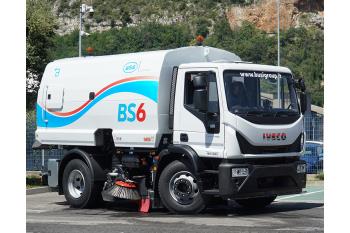

Rubber hose for street sweepers.
Mounted externally to the side or behind road construction machinery for conveying.
The material is sucked from the ground and fed into the tank. Extremely lightweight and flexible, it is designed to be resistant to abrasion, weather, and aging.
Supplied with spiral-free sleeves on each end.
Amber-colored, anti-abrasive, natural rubber underlay, corrugated on a mold.
Black anti-abrasive SBR synthetic rubber cover with fine canvas impression, resistant to traces of oil, ozone and atmospheric agents.
Textile reinforcements and steel spiral embedded in the wall.
The pipe is supplied exclusively with sleeves at the ends, length and internal diameters of the sleeves at the customer's request.
Inner layer: corrugated NR rubber
Reinforcement: steel wire spiral
Outer layer: corrugated NR/SBR compound
Operating temperature: -30°C to +70°C
Below are the standard lengths already produced, other custom lengths available upon request.
Mounted externally to the side or behind road construction machinery for conveying.
The material is sucked from the ground and fed into the tank. Extremely lightweight and flexible, it is designed to be resistant to abrasion, weather, and aging.
Supplied with spiral-free sleeves on each end.
Amber-colored, anti-abrasive, natural rubber underlay, corrugated on a mold.
Black anti-abrasive SBR synthetic rubber cover with fine canvas impression, resistant to traces of oil, ozone and atmospheric agents.
Textile reinforcements and steel spiral embedded in the wall.
The pipe is supplied exclusively with sleeves at the ends, length and internal diameters of the sleeves at the customer's request.
Inner layer: corrugated NR rubber
Reinforcement: steel wire spiral
Outer layer: corrugated NR/SBR compound
Operating temperature: -30°C to +70°C
Below are the standard lengths already produced, other custom lengths available upon request.
| Internal diameter | Length | Operating pressure | Torque pressure | empty |
| mm | mm | bar | bar | bar |
| 203 | 750 | 1 | 3 | 0.3 |
| 203 | 800 | 1 | 3 | 0.3 |
| 203 | 1000 | 1 | 3 | 0.3 |
| 203 | 1120 | 1 | 3 | 0.3 |
| 203 | 1200 | 1 | 3 | 0.3 |
| 203 | 1250 | 1 | 3 | 0.3 |
| 203 | 2000 | 1 | 3 | 0.3 |
| 203 | 2500 | 1 | 3 | 0.3 |
| 203 | 3000 | 1 | 3 | 0.3 |
| 203 | 3600 | 1 | 3 | 0.3 |
| 203 | 3650 | 1 | 3 | 0.3 |
| 203 | 4000 | 1 | 3 | 0.3 |
| 254 | 1000 | 1 | 3 | 0.3 |
| 254 | 1050 | 1 | 3 | 0.3 |
| 254 | 1150 | 1 | 3 | 0.3 |
| 254 | 1200 | 1 | 3 | 0.3 |
| 254 | 1250 | 1 | 3 | 0.3 |
| 254 | 1450 | 1 | 3 | 0.3 |
| 254 | 1500 | 1 | 3 | 0.3 |
| 254 | 1600 | 1 | 3 | 0.3 |
| 254 | 1650 | 1 | 3 | 0.3 |
| 254 | 1750 | 1 | 3 | 0.3 |
