VIBRATORS TUBE - delivery
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

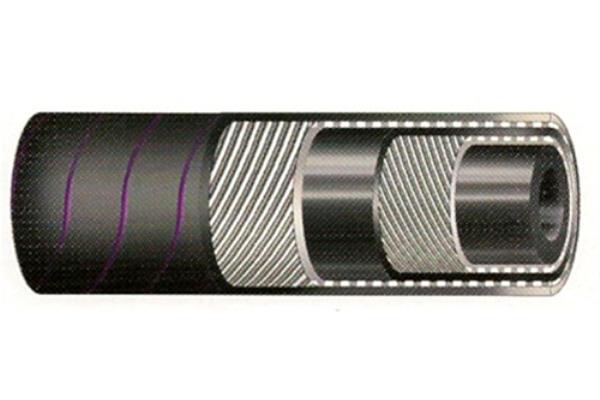

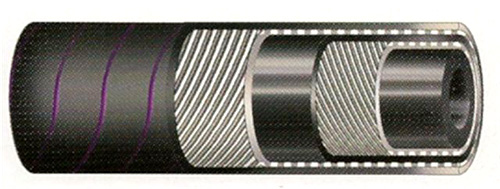

Flexible rubber hose for concrete vibrators.
SBR black rubber with smooth underlayer, shore A85 hardness, reinforcement with textile inserts, smooth black SBR/EPDM rubber cover, resistant to abrasion and atmospheric agents.
Use :
compressed air delivery into pneumatic and electric vibrators.
Structure suitable for keeping the tube section unchanged during use.
Excellent bending radius.
Operating temperature: -20° +70° C.
SBR black rubber with smooth underlayer, shore A85 hardness, reinforcement with textile inserts, smooth black SBR/EPDM rubber cover, resistant to abrasion and atmospheric agents.
Use :
compressed air delivery into pneumatic and electric vibrators.
Structure suitable for keeping the tube section unchanged during use.
Excellent bending radius.
Operating temperature: -20° +70° C.
| Dimension Ø mm | Weight per metre Kg |
|---|---|
| 19x30 | 0.57 |
| 25x36 | 0.71 |
| 25x39 | 0.95 |
| 25x42 | 1.21 |
| 28x40 | 0.87 |
| 30x42 | 0.92 |
| 40x56 | 1.60 |
