ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

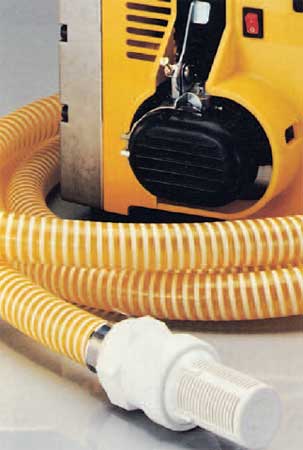

Flexible PVC hose with shock-proof and crush-proof rigid PVC reinforcement spiral.
Resistant to the action of atmospheric agents and most chemical products.
Smooth internal surface.
Good resistance in suction and delivery.
Suitable for contact with food according to DDC.
Operating temperature: -15°C +60°C Yellow colour, transparent with ivory spiral.
Resistant to the action of atmospheric agents and most chemical products.
Smooth internal surface.
Good resistance in suction and delivery.
Suitable for contact with food according to DDC.
Operating temperature: -15°C +60°C Yellow colour, transparent with ivory spiral.
| Codiceo | Dimensions mm | Weight g/m | radius of curvature mm | Pressure maximum bar | Rolls m |
|---|---|---|---|---|---|
| 04PLUI0000020 | 20x26.2 | 275 | 75 | 8 | 50 |
| 04PLUI0000025 | 25x31.6 | 330 | 120 | 8 | 50 |
| 04PLUI0000030 | 30x37.0 | 420 | 140 | 7 | 50 |
| 04PLUI0000032 | 32x39.2 | 460 | 150 | 7 | 50 |
| 04PLUI0000035 | 35x41.8 | 500 | 160 | 7 | 50 |
| 04PLUI0000038 | 38x45.4 | 550 | 170 | 6.5 | 50 |
| 04PLUI0000040 | 40x47.6 | 610 | 180 | 6.5 | 50 |
| 04PLUI0000045 | 45x52.8 | 670 | 200 | 6.5 | 50 |
| 04PLUI0000050 | 50x58.2 | 810 | 220 | 6 | 50 |
| 04PLUI0000060 | 60x69.0 | 970 | 270 | 5 | 50 |
| 04PLUI0000063 | 63x71.5 | 1040 | 290 | 5 | 50 |
| 04PLUI0000070 | 70x79.2 | 1200 | 320 | 4 | 50 |
| 04PLUI0000075 | 75x85.4 | 1380 | 350 | 4 | 50 |
| 04PLUI0000080 | 80x90.6 | 1560 | 360 | 4 | 25 |
| 04PLUI0000090 | 90x100.4 | 1800 | 430 | 4 | 25 |
| 04PLUI0000100 | 100x112.0 | 2160 | 480 | 4 | 25 |
| 04PLUI0000102 | 102x114.0 | 2160 | 480 | 4 | 25 |
| 04PLUI0000110 | 110x122.0 | 2400 | 530 | 4 | 25 |
| 04PLUI0000120 | 120x132.4 | 2800 | 680 | 3 | 25 |
| 04PLUI0000125 | 125x137.6 | 3130 | 730 | 3 | 25 |
| 04PLUI0000150 | 150x164.4 | 4250 | 810 | 3 | 25 |
| 04PLUI0000200 | 200x218.2 | 6400 | 900 | 2 | 10 |
