Antistatic SUPERFLEX PVC SEWAGE HOSE


Download sheet in pdf format
PVC pipe for suction and delivery of petroleum products and liquid fertilizers.

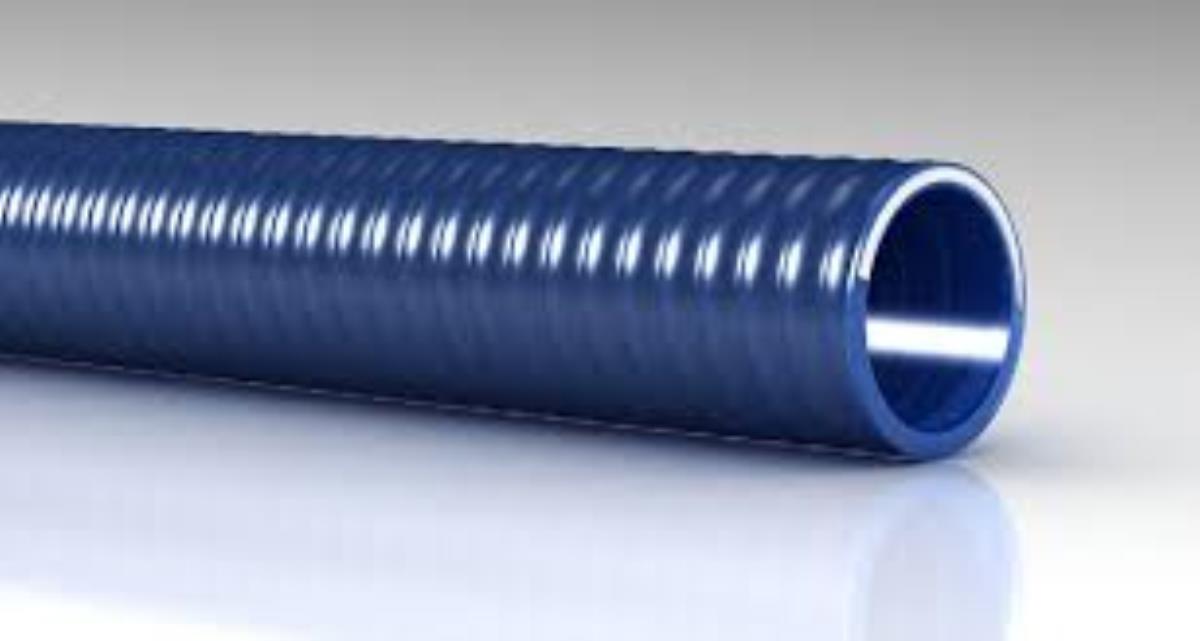

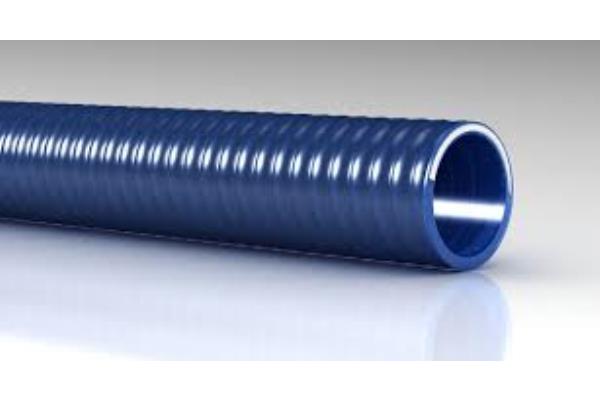

 Smooth outer surface with shock-absorbent rigid PVC spiral.
ANTISTATIC version available on request.
Excellent for general vacuuming, especially on vehicles, where it guarantees excellent flexibility and softness even at low temperatures.
Dark blue color


Diameter
internal
mm		 Weight

gr/m		 Pressure
of exercise
bar		 depression

bar		 Radius
of curvature
mm		 Rolls

m
20 450 8 0.8 80 50
25 580 8 0.8 100 50
30 650 8 0.8 120 50
32 670 8 0.8 128 50
35 720 7 0.8 140 50
38 770 7 0.8 152 50
40 815 7 0.8 160 50
45 960 7 0.8 180 50
51 1150 7 0.8 200 50
60 1530 6 0.8 240 50
63.5 1580 6 0.8 252 50
70 1820 6 0.8 280 50
75 1920 5 0.8 300 50
80 2100 4 0.8 320 30
90 2400 4 0.8 360 30
102 3200 3 0.8 400 30
120 3800 3 0.7 480 25
152 6150 2.5 0.7 608 25
