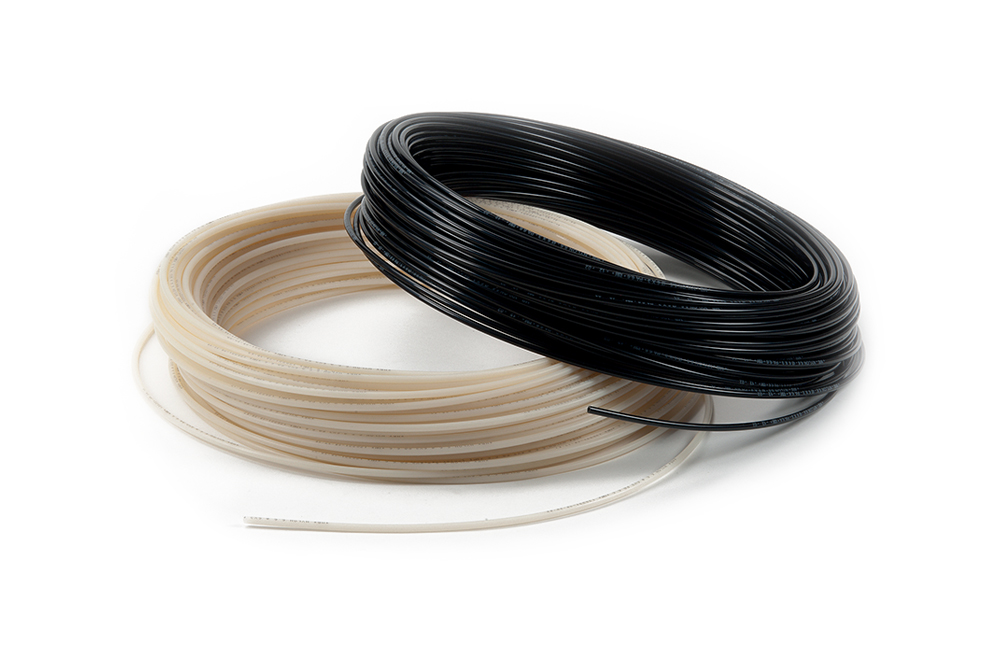

NYLON PIPE PA 66
ONLINE CATALOGUE › HOSES › Hoses for Pneumatic Applications › POLYAMIDE TUBES - RILSAN PA11 - PA12
Download sheet in pdf format
Characteristics Attention!
Rigid linear tube in Nylon PA 6.6 . Its chemical and mechanical characteristics make it an excellent product for greasing and lubrication applications in controlled environments.
Attention!
Absorbs humidity (up to 10%): unreliable values in humid environments.
Standard lengths: 25-50-100 m
Colors: neutral - black
Operating temperatures: from 0°C to 80°C
Burst pressure safety factor: 3:1
| Diameter internal | Diameter external | Thickness wall | Minimum radius of curvature | Pressure of exercise | colors available |
| mm | mm | mm | mm | Cafe | Black-Translucent |
| 1.5 | 4 | 1.25 | 15 | 136 | NT |
| 2 | 4 | 1.00 | 15 | 100 | NT |
| 2.5 | 4 | 0.75 | 25 | 69 | T |
| 3 | 4 | 0.50 | 35 | 42 | NT |
| 3 | 6 | 1.50 | 25 | 100 | NT |
| 3.6 | 6 | 1.20 | 30 | 75 | T |
| 4 | 6 | 1.00 | 40 | 60 | T |
| 5 | 8 | 1.50 | 45 | 69 | NT |
| 6 | 8 | 1.00 | 70 | 42 | NT |
| 7 | 10 | 1.50 | 70 | 52 | NT |
| 7.5 | 9.5 | 1.00 | 95 | 35 | T |
| 8 | 10 | 1.00 | 110 | 33 | T |
