Flexible hoses for liquid suction for industrial, agricultural and sewage disposal

ARIZONA SUPERELASTIC TUBE

ARIZONA SUPERELASTIC TUBE
Download sheet in pdf format

Description and technical data

Very flexible general purpose plastic hose for medium to heavy duty.
Very robust with external shock-proof rigid PVC spiral.
Completely smooth internal surface, smooth external surface.
High suction resistance. SHORE A hardness 57
Resistant to the action of atmospheric agents and most chemical products.
Operating temperature: -25°C +55°C
Vacuum value: 9 meters of water column.
Suitable for heavy-duty uses where extreme flexibility is required.

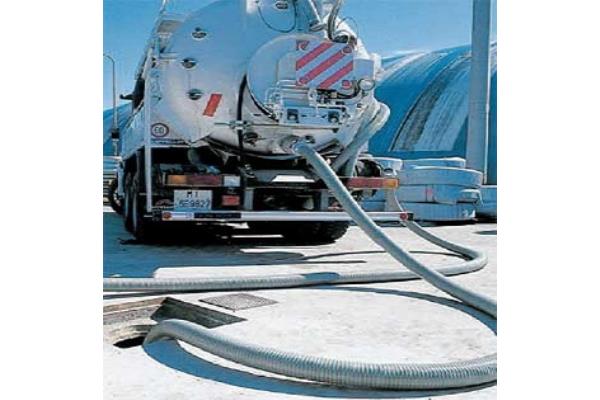

Ideal for industrial liquid suction, irrigation, well draining, waste water purging.
COLOR: gray with green reinforcement spiral



Item Dimension Ø inch Dimension Ø mm Weight gr/m Curvature radius mm Operating pressure bar Rolls
m
04PARI0000025 1" 25 500 100 7 50
04PARI0000032 1 1/4" 32 600 130 6 50
04PARI0000038 1 1/2" 38 700 150 6 50
04PARI0000040   40 740 160 6 50
04PARI0000045 1 3/4" 45 900 180 5.5 50
04PARI0000050 2" 50 1050 200 5 50
04PARI0000060   60 1250 240 4.5 50
04PARI0000063 2 1/2" 63 1390 250 4.5 50
04PARI0000075   75 1700 300 4 30
04PARI0000076 3" 76 1700 300 4 30
04PARI0000080   80 1850 320 3.5 30
04PARI0000089 3 1/2" 89 2250 360 3.5 30
04PARI0000090   90 2250 360 3.5 30
04PARI0000100   100 2700 400 3 30
04PARI0000102 4" 102 2700 400 3 30
04PARI0000110   110 3100 440 3 20
04PARI0000120   120 3600 480 2.5 20
04PARI0000125   125 3900 500 2.5 20
04PARI0000127 5" 127 3900 500 2.5 20
04PARI0000130   130 4100 520 2.5 20
04PARI0000150   150 4200 600 2 20
04PARI0000152 6" 152 5000 610 2 20
04PARI0000160   160 5600 640 2 20
04PARI0000200   200 9500 800 1.5 -
04PARI0000203 8" 203 9500 800 1.5 -
04PARI0000254 10" 254 13500 1000 1.5 -
04PARI0000304 12" 304 18000 1200 1.5 -
