BLEED TRUCK/5/CLC
ONLINE CATALOGUE › HOSES › Self-bleeder hoses
Download sheet in pdf format

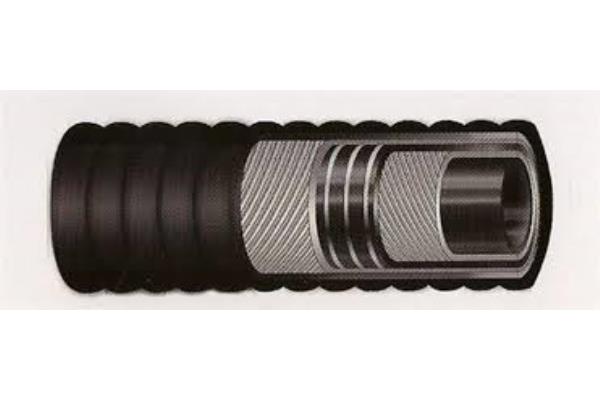

Rubber hose for suction and delivery of water and non-corrosive fluids.
Tube: Heavy abrasion resistant black synthetic rubber.
High tenacity canvases inserted. Built-in steel spiral. External surface with wide corrugation and canvas impression.
Anti-abrasive covering with fine cloth impression and wide corrugation, resistant to atmospheric agents. Smooth end sleeves at the ends on request.
Maximum working pressure 5 bar, burst 15 bar.
Maximum suction value: 0.8 bar at room temperature
Operating temperature: -30°C to +90°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, water pumps, liquid fertilizers, septic tank clearing.
Packed in rolls or standard bars maximum 4 meters - other sizes on request .
Tube: Heavy abrasion resistant black synthetic rubber.
High tenacity canvases inserted. Built-in steel spiral. External surface with wide corrugation and canvas impression.
Anti-abrasive covering with fine cloth impression and wide corrugation, resistant to atmospheric agents. Smooth end sleeves at the ends on request.
Maximum working pressure 5 bar, burst 15 bar.
Maximum suction value: 0.8 bar at room temperature
Operating temperature: -30°C to +90°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, water pumps, liquid fertilizers, septic tank clearing.
Packed in rolls or standard bars maximum 4 meters - other sizes on request .
| Diameter internal mm | Weight Kg/m | radius of curvature mm | Max pressure of exercise Cafe | Pressure of explosion Cafe | Aspiration Cafe |
|---|---|---|---|---|---|
| 50 | 1.6 | 175 | 5 | 15 | 0.8 |
| 60 | 1.8 | 210 | 5 | 15 | 0.8 |
| 80 | 2.8 | 280 | 5 | 15 | 0.8 |
| 102 | 3.4 | 357 | 5 | 15 | 0.8 |
| 120 | 4.4 | 420 | 5 | 15 | 0.8 |
| 152 | 5,6 | 532 | 5 | 15 | 0.8 |
| 203 | 9.6 | 710 | 5 | 15 | 0.8 |
| 254 | 12.3 | 889 | 3 | 9 | 0.7 |
| 305 | 16.6 | 1067 | 3 | 9 | 0.7 |
