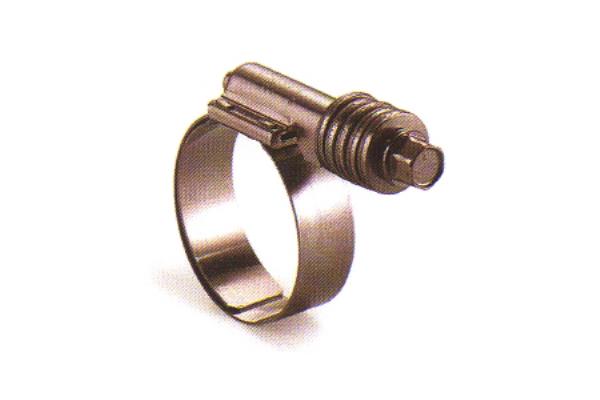

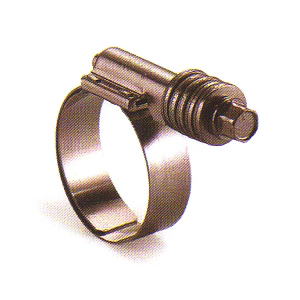

COSTANT TORQUE INOX clamp
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format
Constant tension clamps used on pipes subject to diametric variations caused by thermal expansion due to the considerable stress of internal combustion engines and their considerable vibrations.
the dynamic control of the cup springs guarantees a high tightening torque, always constant.
In the presence of fluid leaks caused by traditional clamps, the use of these clamps allows you to significantly reduce maintenance and fluid top-up costs. Rounded edges to give maximum protection to the pipes.
Band and drawer in AISI300 stainless steel - side in AISI410 stainless steel.
the dynamic control of the cup springs guarantees a high tightening torque, always constant.
In the presence of fluid leaks caused by traditional clamps, the use of these clamps allows you to significantly reduce maintenance and fluid top-up costs. Rounded edges to give maximum protection to the pipes.
Band and drawer in AISI300 stainless steel - side in AISI410 stainless steel.
| Band Width 14.3mm | Band Width 16mm | ||
| Clamping range mm | packaging minimal | Clamping range mm | packaging minimal |
| 13-23 | 50 | 25-45 | 50 |
| 14-27 | 50 | 32-54 | 50 |
| 17-32 | 50 | 45-67 | 50 |
| 21-38 | 50 | 57-79 | 50 |
| 21-44 | 50 | 70-92 | 50 |
| 27-51 | 10 | 83-105 | 50 |
| 33-57 | 10 | 95-118 | 50 |
| 40-64 | 10 | 108-130 | 50 |
| 46-70 | 10 | 121-143 | 50 |
| 52-76 | 10 | 133-156 | 25 |
| 59-83 | 10 | 146-168 | 25 |
| 65-89 | 10 | 159-181 | 25 |
| 71-95 | 10 | 172-194 | 25 |
| 78-102 | 10 | 184-206 | 25 |
| - | - | 197-219 | 25 |
| - | - | 210-232 | 25 |
