METAL PVC PIPE
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

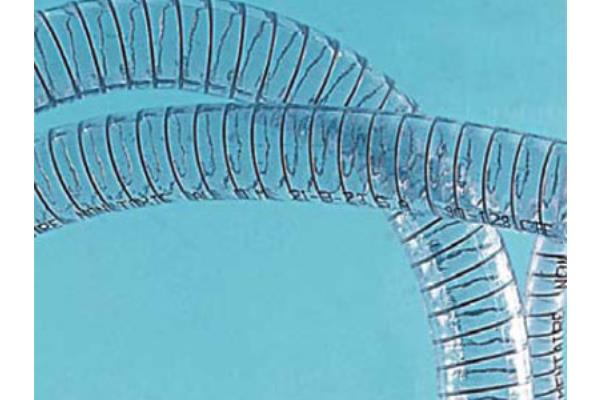

TRANSPARENT PVC flexible hose with harmonic steel reinforcement spiral.
Smooth internal and external surface. Resistant to the action of atmospheric agents and most chemical products. Excellent resistance in suction and delivery.
Non-toxic hose suitable for contact with food according to directive 2007/18 EC simulants ABCD1 and subsequent amendments
Operating temperature from -15°C to +65°C
Applications: delivery and suction of water, industrial liquids, chemical and agricultural products, compatible food substances.
Smooth internal and external surface. Resistant to the action of atmospheric agents and most chemical products. Excellent resistance in suction and delivery.
Non-toxic hose suitable for contact with food according to directive 2007/18 EC simulants ABCD1 and subsequent amendments
Operating temperature from -15°C to +65°C
Applications: delivery and suction of water, industrial liquids, chemical and agricultural products, compatible food substances.
| Code | Dimension mm |
Weight g/m |
radius curvature mm |
Pressure at T 20°C Bar |
empty mH 2 O |
Rot. m |
|---|---|---|---|---|---|---|
| 05METALPVC010 | 10x16 | 160 | 20 | 8 | 9 | 60 |
| 05METALPVC012 | 12x18 | 180 | 25 | 8 | 9 | 60 |
| 05METALPVC014 | 14x20 | 230 | 30 | 8 | 9 | 60 |
| 05METALPVC016 | 16x22 | 270 | 35 | 8 | 9 | 60 |
| 05METALPVC018 | 18x24 | 300 | 40 | 7 | 9 | 60 |
| 05METALPVC020 | 20x27 | 340 | 50 | 7 | 9 | 60 |
| 05METALPVC022 | 22x29 | 380 | 55 | 6 | 9 | 60 |
| 05METALPVC025 | 25x33 | 500 | 60 | 6 | 9 | 60 |
| 05METALPVC030 | 30x38 | 600 | 70 | 5 | 9 | 60 |
| 05METALPVC032 | 32x41 | 650 | 75 | 5 | 9 | 60 |
| 05METALPVC035 | 35x44 | 750 | 80 | 5 | 9 | 60 |
| 05METALPVC038 | 38x47 | 800 | 90 | 4.5 | 9 | 30 |
| 05METALPVC040 | 40x49 | 930 | 95 | 4.5 | 9 | 30 |
| 05METALPVC045 | 45x55 | 1150 | 110 | 4.5 | 8.5 | 30 |
| 05METALPVC050 | 50x60 | 1450 | 125 | 4 | 8.5 | 30 |
| 05METALPVC060 | 60x72 | 1800 | 140 | 4 | 8.5 | 30 |
| 05METALPVC063 | 63x75 | 1880 | 150 | 4 | 8.5 | 30 |
| 05METALPVC070 | 70x83 | 2100 | 180 | 3.5 | 8.5 | 30 |
| 05METALPVC076 | 75x85 | 2300 | 200 | 3.5 | 8.5 | 30 |
| 05METALPVC080 | 80x94 | 2500 | 220 | 3 | 8.5 | 30 |
| 05METALPVC090 | 90x103 | 2900 | 260 | 3 | 8.5 | 30 |
| 05METALPVC102 | 102x115 | 3700 | 310 | 3 | 8.5 | 30 |
| 05METALPVC125 | 125x144 | 4700 | 385 | 2 | 6 | 20 |
| 05METALPVC152 | 152x170 | 6350 | 460 | 2 | 6 | 20 |
Related products

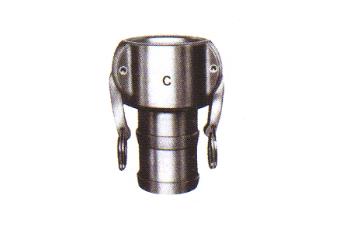

CAMLOCK TYPE C
This type of fitting has been designed for the rapid and safe connection between two pipes in the shortest possible time...

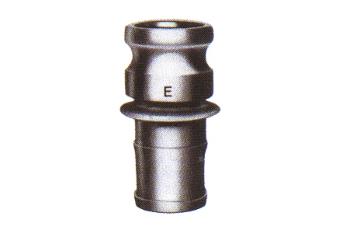

CAMLOCK TYPE E
