WATER HOSE 10 SPECIAL
ONLINE CATALOGUE › HOSES › Water delivery hoses
Download sheet in pdf format

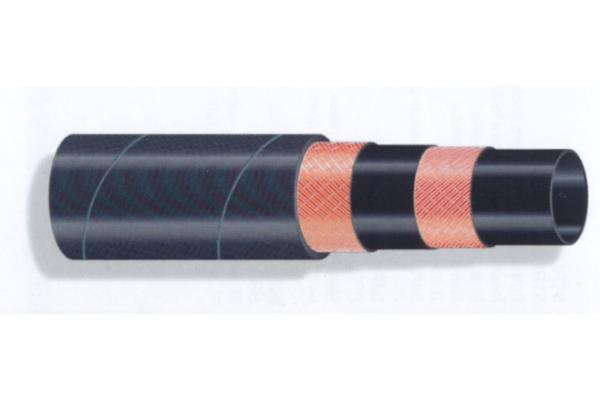

Hose for delivery of water and non-corrosive fluids. General industrial applications.
Tube: SBR , black, smooth.
Internal structure with intermediate layer made of high tenacity canvas.
Tube: SBR , black, smooth.
Internal structure with intermediate layer made of high tenacity canvas.
Anti-abrasive black cover with fine cloth finish.
Temperature: -30°C to +80°C.
Operating pressure 10 bar, burst pressure 30 bar.
Temperature: -30°C to +80°C.
Operating pressure 10 bar, burst pressure 30 bar.
| Code | OR |
|---|---|
| 04GS100016/023T | 16x23 |
| 04GS100020/030T | 20x30 |
| 04GS100022/030T | 22x30 |
| 04GS100025/033T | 25x35 |
| 04GS100030/042T | 30x41 |
| 04GS100032/044T | 32x44 |
| 04GS100035/047T | 35x47 |
| 04GS100038/052T | 38x50 |
| 04GS100040/054T | 40x54 |
| 04GS100045/059T | 45x59 |
| 04GS100050/064T | 51x64 |
| 04GS100055/065T | 55x65 |
| 04GS100060/074T | 60x74 |
| 04GS100063/075T | 63x75 |
| 04GS100070/087T | 70x87 |
| 04GS100075/092T | 75x92 |
| 04GS100080/098T | 80x98 |
| 04GS100090/108T | 90x108 |
| 04GS100100/119T | 100x119 |
| 04GS100110/132T | 110x132 |
| 04GS100120/141T | 120x142 |
| 04GS100124/141T | 125x145 |
| 04GS100150/174T | 150x174 |
