Water delivery hoses

WATER HOSE 10

WATER HOSE 10
Download sheet in pdf format

Description and technical data

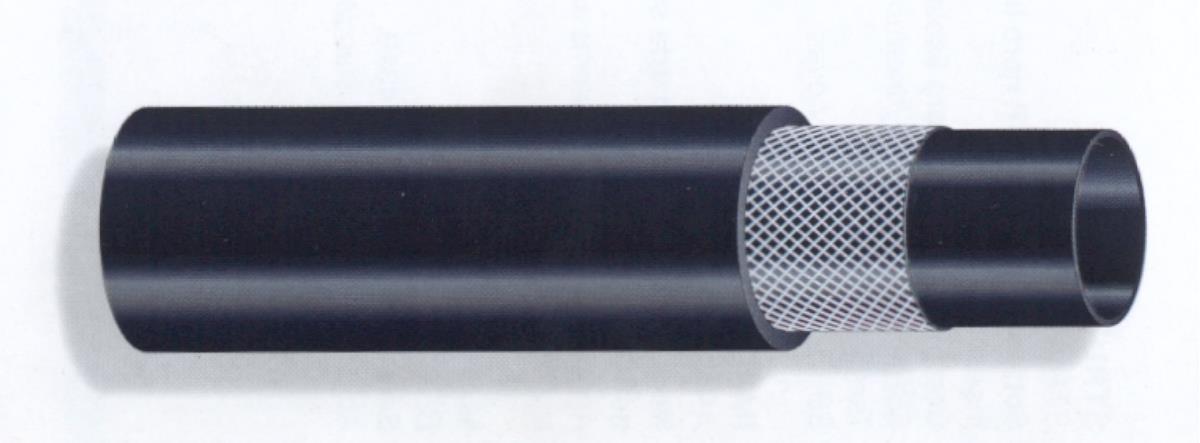

Hose for delivery of water and inert fluids.
Tube: SBR, smooth black.
Reinforcement: layers of polyester threads.
Black external surface in rubber resistant to abrasion and atmospheric agents.

Operating pressure: 10 bar
Burst pressure: 30 bar
Limit temperature: -20°C +80°C
Packaging in 50m rolls (100m on request)

Code
 diameters
mm		 radius
of curvature
mm
04G0100006/12 6x12 40
04G0100008/15 8x15 65
04G0100010/17 10x17 80
04G0100012/17 12x18 95
04G0100013/19 13x19 105
04G0100015/21 15x21 120
04G0100016/23 16x23 130
04G0100019/26 19x26 150
04G0100020/30 20x30 160
04G0100022/30 22x30 175
04G0100025/35 25x35 200
