WATER WAVY HOSE
ONLINE CATALOGUE › HOSES › Water intake hoses
Download sheet in pdf format

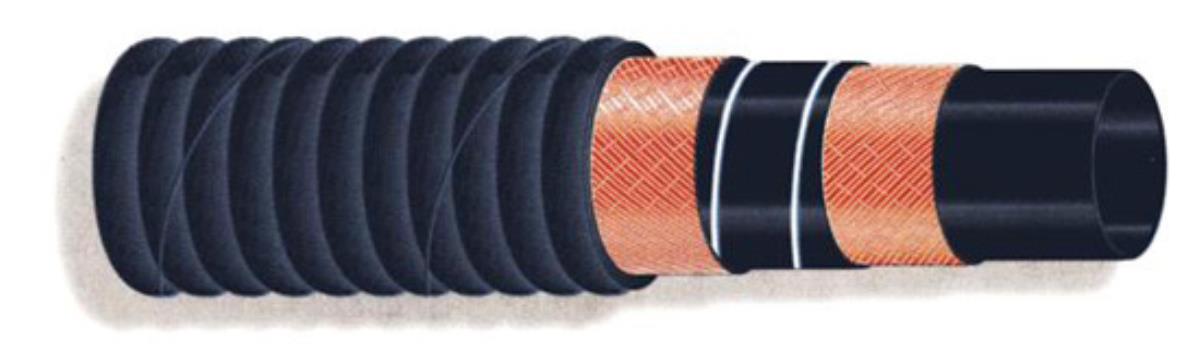

Rubber hose for suction and delivery of water and non-corrosive fluids.
Tube: black synthetic rubber.
High tenacity canvases inserted.
Built-in steel spiral.
Wavy external surface with canvas impression.
Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents.
Smooth end sleeves at the ends.
Maximum operating pressure: 10 bar, burst 30 bar.
Maximum suction value: 0.8 bar
Operating temperature: -30°C to +80°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, water pumps, liquid fertilizers, septic tank clearing.
SIZES ON REQUEST.
Tube: black synthetic rubber.
High tenacity canvases inserted.
Built-in steel spiral.
Wavy external surface with canvas impression.
Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents.
Smooth end sleeves at the ends.
Maximum operating pressure: 10 bar, burst 30 bar.
Maximum suction value: 0.8 bar
Operating temperature: -30°C to +80°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, water pumps, liquid fertilizers, septic tank clearing.
SIZES ON REQUEST.
| Item number | Dimensions Ø mm | Weight Kg/m | Curvature radius mm | Maximum operating pressure bar | Burst pressure bar | Bar suction |
|---|---|---|---|---|---|---|
| 04OND0000050 | 50 | 1.6 | 250 | 10 | 30 | 0.8 |
| 04OND0000060 | 60 | 1.8 | 300 | 10 | 30 | 0.8 |
| 04OND0000080 | 80 | 2.8 | 400 | 10 | 30 | 0.8 |
| 04OND0000100 | 102 | 3.4 | 500 | 10 | 30 | 0.8 |
| 04OND0000120 | 120 | 4.4 | 600 | 10 | 30 | 0.8 |
| 04OND0000152 | 152 | 5.6 | 750 | 5 | 15 | 0.8 |
| 04OND0000203 | 203 | 9.6 | 1015 | 5 | 15 | 0.8 |
| 04OND0000254 | 254 | 12.3 | 1270 | 3 | 9 | 0.7 |
| 04OND0000305 | 305 | 16.6 | 1525 | 3 | 9 | 0.7 |
