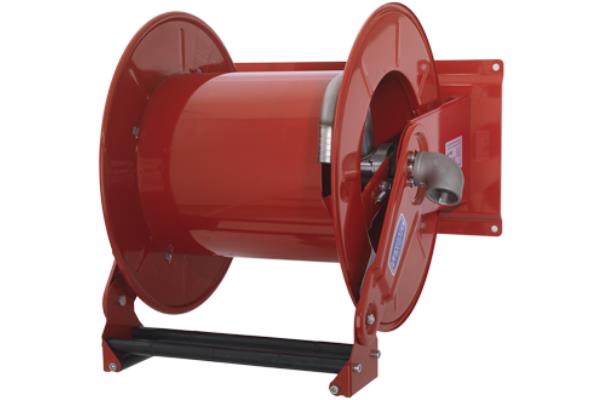

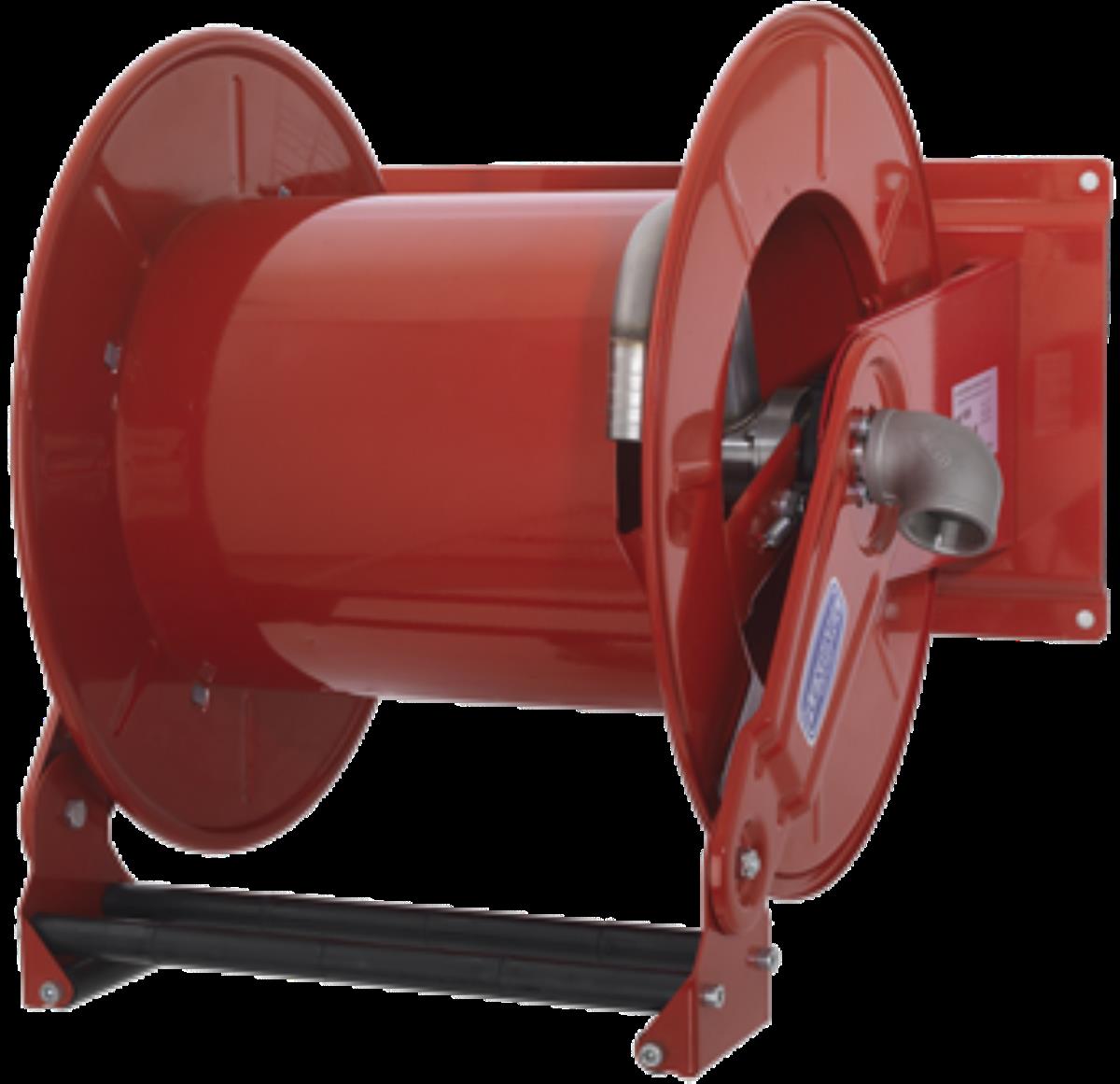

AUTOMATIC HOSE REEL FOR DIESEL

Description and technical data

Spring hose reel in painted steel , articulated series with double traction spring.

Suitable for use at distances of up to 20 m for Ø 1'1/4” pipes and 15 m Ø 1'1/2” pipes.

The reel is supplied without hose as standard and can be used for rewinding oil, diesel, air and water hoses. The passage of the fluid occurs through an interchangeable pin in galvanized steel.

On request with AISI 304 or AISI 316 STAINLESS STEEL structure.
On request, version with SPRING_BRAKE SYSTEM can be supplied

Maximum operating pressure 20 bar

USEFUL JOINT HOLE mm	MAXIMUM PIPE DIAMETER inch	TUBE LENGTH m	WEIGHT kg	BAND WIDTH mm	DIMENSIONS (LPH) mm
25	1"1/4	8	18	200	330x650x600
25	1"1/4	20	49	400	590x650x600
32	1"1/2	15	50	400	590x650x600
25	1"1/4	8	18	200	330x650x600
25	1"1/4	20	49	400	330x650x600
32	1"1/2	15	50	400	330x650x600

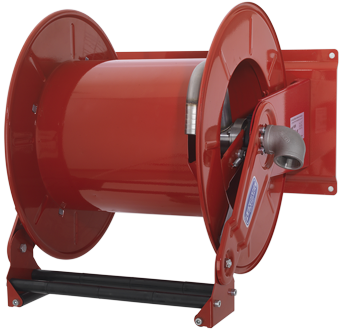

AUTOMATIC HOSE REEL FOR DIESEL
