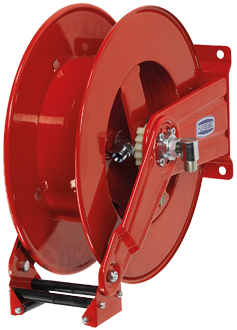

25 meter hose reel SMALL SIZE
ONLINE CATALOGUE › HOSE REEL › Mini hose reel
Download sheet in pdf format

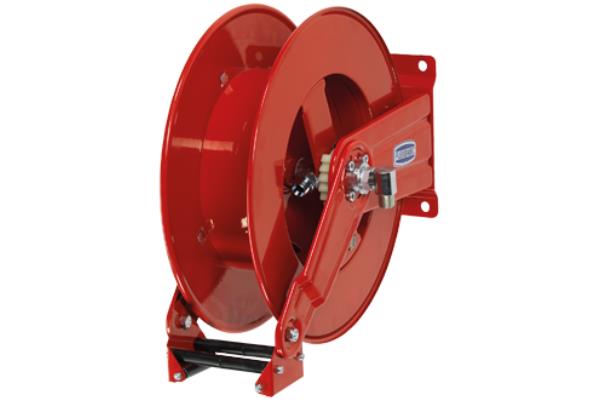

Spring hose reel in painted steel “SMALL SIZE” series
single sided suitable for use at distances of up to 25 m for Ø 1/2” pipes.
The innovative construction design makes the reel particularly suitable for
applications in environments with limited availability of space in width thanks
to a maximum size of 560 mm, for example inside compact boxes.
The presence of a swivel bracket (on request) allows rotation beyond 90°
for frontal use and quick repositioning after use without
create obstacles for the operator or other equipment.
On request version with brake-spring kit
STAINLESS STEEL VERSION - maximum pressure 200 bar for AdBlue®.
single sided suitable for use at distances of up to 25 m for Ø 1/2” pipes.
The innovative construction design makes the reel particularly suitable for
applications in environments with limited availability of space in width thanks
to a maximum size of 560 mm, for example inside compact boxes.
The presence of a swivel bracket (on request) allows rotation beyond 90°
for frontal use and quick repositioning after use without
create obstacles for the operator or other equipment.
On request version with brake-spring kit
STAINLESS STEEL VERSION - maximum pressure 200 bar for AdBlue®.
CODE | structure | Pressure Maximum Cafe | Attacks IN-OUT m/f | pipe cutter 3/8" - 1/2" length metres | Weight Kg | Dimensions (LPH) mm | band |
| 090 | red steel | 600 | 1/2" | 15 | 12 | 240x560x450 | 120 |
| 091 | red steel | 600 | 1/2" | 8pm - 3pm | 13 | 240x560x450 | 120 |
| 092 | red steel | 600 | 1/2" | 25 - 20 | 16 | 270x560x450 | 150 |
| 093 | red steel | 600 | 1/2" | 25 | 19 | 303x560x450 | 200 |
| 590 | stainless steel | 200 | 1/2" | 15 | 12 | 240x560x450 | 120 |
| 591 | stainless steel | 200 | 1/2" | 8pm - 3pm | 13 | 240x560x450 | 120 |
| 592 | stainless steel | 200 | 1/2" | 25 - 20 | 16 | 270x560x450 | 150 |
| 593 | stainless steel | 200 | 1/2" | 25 | 19 | 303x560x450 | 200 |
