INSULATING SHEATH IN TECHNICAL FABRIC

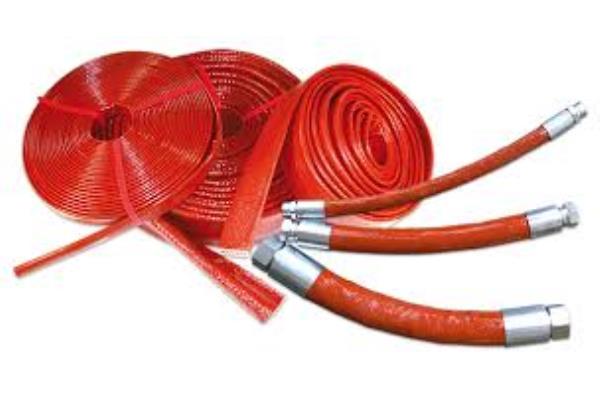

FIREPROOF SHEATH IN FIBERGLASS AND SILICONE

Description and technical data

CHARACTERISTICS

Continuous operating temperature: -60° +260°
Resistance to thermal peaks: 30' at +800° - 15' at +1100° - 1' at +1500°
Good resistance in the presence of flames, splashes of metal or molten glass, steam flows.
Excellent flexibility even at low temperatures
Hydrocarbons may cause slight swelling
Good UV resistance
Asbestos-free, flame-retardant and self-extinguishing
Halogen-free - Waterproof - Thermal insulating

REFERENCE STANDARDS: EN45545 / DIN 5510-2 / UL 1441

- Sheath diameters: from Ø 6 to Ø 127mm
- Standard color brick red
- Roll length 20m up to Ø 75
- Roll length 15m in addition to Ø 75

INTERNAL DIAMETER	DIAMETER EXTERNAL
mm	mm
6	8.4
8	10.6
10	13.2
12	15.4
13	16.8
15	19.2
20	24.6
22	27
25	30.2
30	35.8
32	38
35	41.2
38	44.6
40	46.8
45	52
50	57.4
55	62.8
60	68
65	73.2
70	78.6
75	83.8
89	99
102	114
105	117
110	122
115	127
127	139
