CLAMP RIDES THE WIRE

ANTI-CLOCKWISE WIRE CLIP

Description and technical data

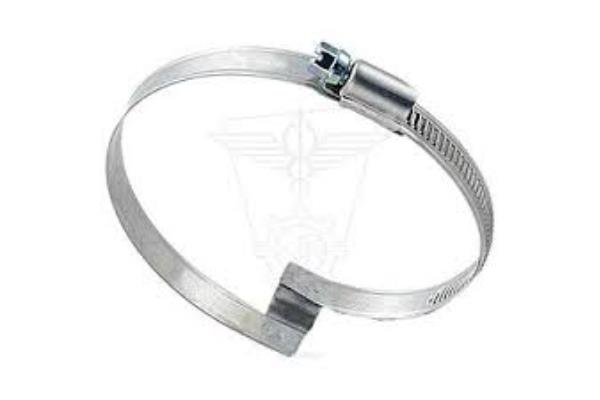

"WIRE-STRAPPER" HOSE CLAMP COUNTERCLOCKWISE

FOR PIPES WITH EXTERNAL SPIRAL OR METAL CRIMPING,

IDEAL FOR CONSTANT TIGHTENING OF THE PIPE TO THE CONNECTING TUBE.

Used for low pressure air/gas flexible conduits, even for large pipes.
TORRO cable tie made in Germany with high performance and sealing BAND 12mm
The screw/cassette system's design ensures high tightening torques and satisfies the most demanding applications; the band's edges are rounded to prevent damage to the pipes.

standard supply entirely in W4 AISI 430 steel

supply on request entirely in W5 AISI 304 steel

– Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and assembly safety Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the strap tape
– Material and clamping range indicated on the tape
– error prevention Asymmetric drawer position
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the pipe thanks to the rounded edge band

WHEN REQUESTING A QUOTE IT IS NECESSARY TO KNOW THE STEP
OF THE SPIRAL OF THE PIPE ON WHICH THE CLAMP IS MOUNTED

closing field	PACKAGING
16-27	100
20-32	100
25-40	100
30-45	100
35-50	100
40-60	100
50-70	100
60-80	100
70-90	50
80-100	50
90-110	50
100-120	25
110-130	25
120-140	25
130-150	25
140-160	10
150-170	10
160-180	10
170-190	10
180-200	10
190-210	10
200-220	10
