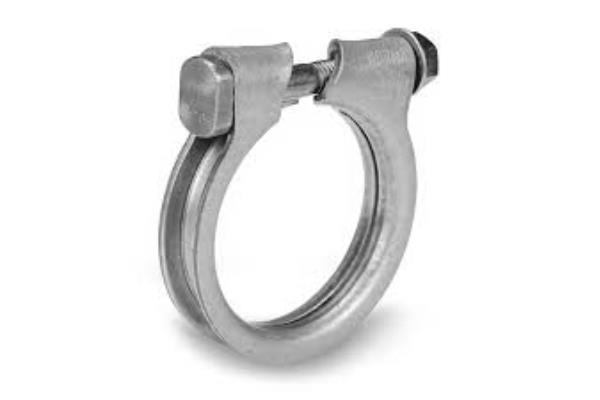

ARS COLLAR
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › ARS MODEL COLLAR
Download sheet in pdf format
Suitable for the safe and reliable connection of endothermic engine fume exhaust pipes where a male-female coupling is envisaged, even for those that are subject to significant temperature fluctuations.
One-piece clamping band
uniform contact pressure over the entire circumference of the tube
Excellent sealing properties
Single bolt closure for easy assembly.
Rounded band edges for the
hose protection and reduction of the risk of injury.
W1 material Chromium VI free
Packs of 10 pieces
ITEM | DIAMETER OF TIGHTENING mm | Thickness Collar mm |
| 41ARSM8-27W1 | 27 | 1.5 |
| 41ARSM8-33W1 | 33 | 1.5 |
| 41ARSM8-36W1 | 36 | 2 |
| 41ARSM8-40W1 | 39.5 | 2 |
| 41ARSM8-42W1 | 42 | 2 |
| 41ARSM8-45W1 | 45 | 2.5 |
| 41ARSM8-46W1 | 46 | 2.5 |
| 41ARSM8-47W1 | 47 | 2.5 |
| 41ARSM8-48W1 | 48 | 2.5 |
| 41ARSM8-49W1 | 49 | 2.5 |
| 41ARSM8-50.5W1 | 51-54 | 2.5 |
| 41ARSM8-51W1 | 48-51 | 2.5 |
| 41ARSM8-54W1 | 51-54 | 2.5 |
| 41ARSM8-55W1 | 52-55 | 2.5 |
| 41ARSM8-58W1 | 55-58 | 2.5 |
| 41ARSM8-64W1 | 61-64 | 2.5 |
| 41ARSM8-66W1 | 63-66 | 2.5 |
| 41ARSM8-71W1 | 68-71 | 2.5 |
