FLEX HOSE HT 450 - FIBERGLASS
ONLINE CATALOGUE › HOSES › Specific flexible hoses for engine test rooms
Download sheet in pdf format

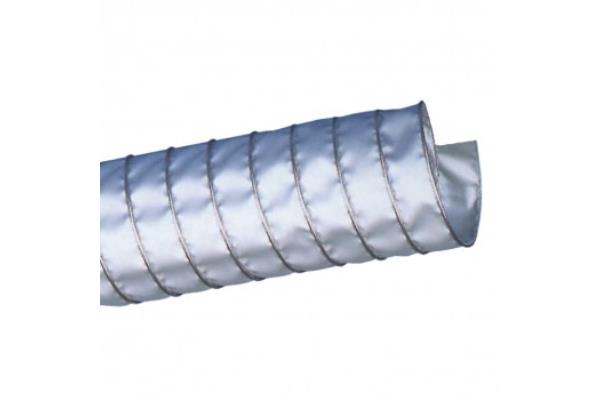

Flexible hose made with an external fiberglass fabric,
asbestos-free, impregnated with a special chemical compound
SILICONE based. The internal part consists of one layer
made of thick, soft, resistant white raw glass fibre
at a maximum temperature of 450°C continuous or intermittent peaks
and for a few minutes at 550°C. The tube is further reinforced by
an external spiral in galvanized steel seamed externally.
Excellent resistance to depression and tearing.
Difficult to flammable, it has excellent flexibility and axial compressibility.
Particularly suitable when we are in the presence of particulate matter
and incandescent microdust due to the combustion of automotive diesel.
Wall color SILVER GRAY
Use:
delivery under light pressure of fumes and engine exhaust gas for engine test benches, automotive industry, industrial and military vehicles. Suction and conveyance of high temperature air in industrial furnaces, steel industry.
Diameters produced on request:
65-70-75-80-90-100-110-120-125-130-140-150-160-170-175-180-200
215-225-250-275-300-315-325-350-375-400-450-500-600-700-800-900
Standard length of minimum 2 metres
asbestos-free, impregnated with a special chemical compound
SILICONE based. The internal part consists of one layer
made of thick, soft, resistant white raw glass fibre
at a maximum temperature of 450°C continuous or intermittent peaks
and for a few minutes at 550°C. The tube is further reinforced by
an external spiral in galvanized steel seamed externally.
Excellent resistance to depression and tearing.
Difficult to flammable, it has excellent flexibility and axial compressibility.
Particularly suitable when we are in the presence of particulate matter
and incandescent microdust due to the combustion of automotive diesel.
Wall color SILVER GRAY
Use:
delivery under light pressure of fumes and engine exhaust gas for engine test benches, automotive industry, industrial and military vehicles. Suction and conveyance of high temperature air in industrial furnaces, steel industry.
Diameters produced on request:
65-70-75-80-90-100-110-120-125-130-140-150-160-170-175-180-200
215-225-250-275-300-315-325-350-375-400-450-500-600-700-800-900
Standard length of minimum 2 metres
| Dimensions mm | Depression Cafe | Radius of curvature mm | Weight Kg/m |
|---|---|---|---|
| 50 | 0.44 | 37.5 | |
| 60 | 0.31 | 45.0 | |
| 76 | 0.20 | 57.0 | 1.00 |
| 102 | 0.11 | 76.5 | 1.30 |
| 120 | 0.08 | 90.0 | 1.40 |
| 152 | 0.05 | 114.0 | 1.80 |
| 180 | 0.04 | 220.5 | 2.10 |
| 203 | 0.03 | 152.2 | 2.30 |
| 254 | 0.02 | 190.5 | 2.60 |
| 305 | 0.01 | 228.8 | 2.75 |
| 407 | 0.01 | 476.8 | 3.40 |
| 508 | 0.01 | 381.0 | 4.50 |
Related products
1109 ROMA MALE HOSE PORT
Yellow brass fitting conical bsp male threaded hose fitting 'roma' type item th style="text-al

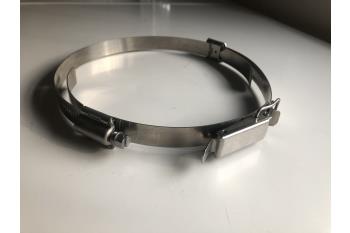

HEAVY DUTY BOLT CLAMP W2
Bolt collars for high pressures and for reinforced pipes, with spirals or with high hardness. the bolt is engaged direct...

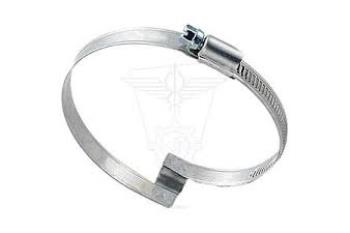

ANTI-CLOCKWISE WIRE CLIP
