IP-FLEX WIRE CLIP BAND 9 W2

ONLINE CATALOGUE  ›  CABLE TIES AND TIGHTENING SYSTEMS  ›  CLAMP RIDES THE WIRE



Download sheet in pdf format

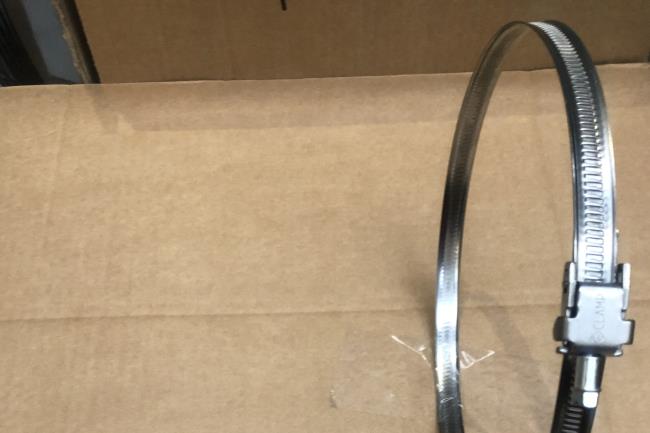

Clamps with worm screw and tilting drawer, which guarantee
extreme versatility and speed of use, especially on large diameters.
The band is full and fully serrated and the rounded edges protect
Any damage to the tube. 9 mm printed tape.

W2 steel version
Tape and drawer in stainless steel 1.4016/AISI430, screw in galvanized steel
Chromium VI free. Salt spray corrosion resistance minimum 144 h

W4 steel version
All components: belt, drawer, screw in stainless steel 1.4301/AISI304
Salt spray corrosion resistance minimum 240 h

- VERSION FOR PIPES WITH CLOCKWISE ROTATING SPIRAL (DX)
- VERSION FOR PIPES WITH COUNTERCLOCKWISE ROTATING SPIRAL (SX)
WHEN REQUESTING A QUOTE IT IS NECESSARY TO KNOW THE STEP
OF THE SPIRAL OF THE PIPE ON WHICH THE CLAMP IS MOUNTED

CODE scope of application PACKAGING
41FAPNTW2-60/110_DX 60-110 10
41FAPNTW2-60/110_SX 60-110 10
41FAPNTW2-60/135_DX 60-135 10
41FAPNTW2-60/135_SX 60-135 10
41FAPNTW2-60/145_DX 60-145 10
41FAPNTW2-60/145_SX 60-145 10
41FAPNTW2-60/170_DX 60-170 10
41FAPNTW2-60/170_SX 60-170 10
41FAPNTW2-60/215_DX 60-215 10
41FAPNTW2-60/215_SX 60-215 10
41FAPNTW2-60/280_DX 60-280 10
41FAPNTW2-60/280_SX 60-280 10
41FAPNTW2-60/325_DX 60-325 10
41FAPNTW2-60/325_SX 60-325 10
41FAPNTW2-60/380_DX 60-380 10
41FAPNTW2-60/380_SX 60-380 10
